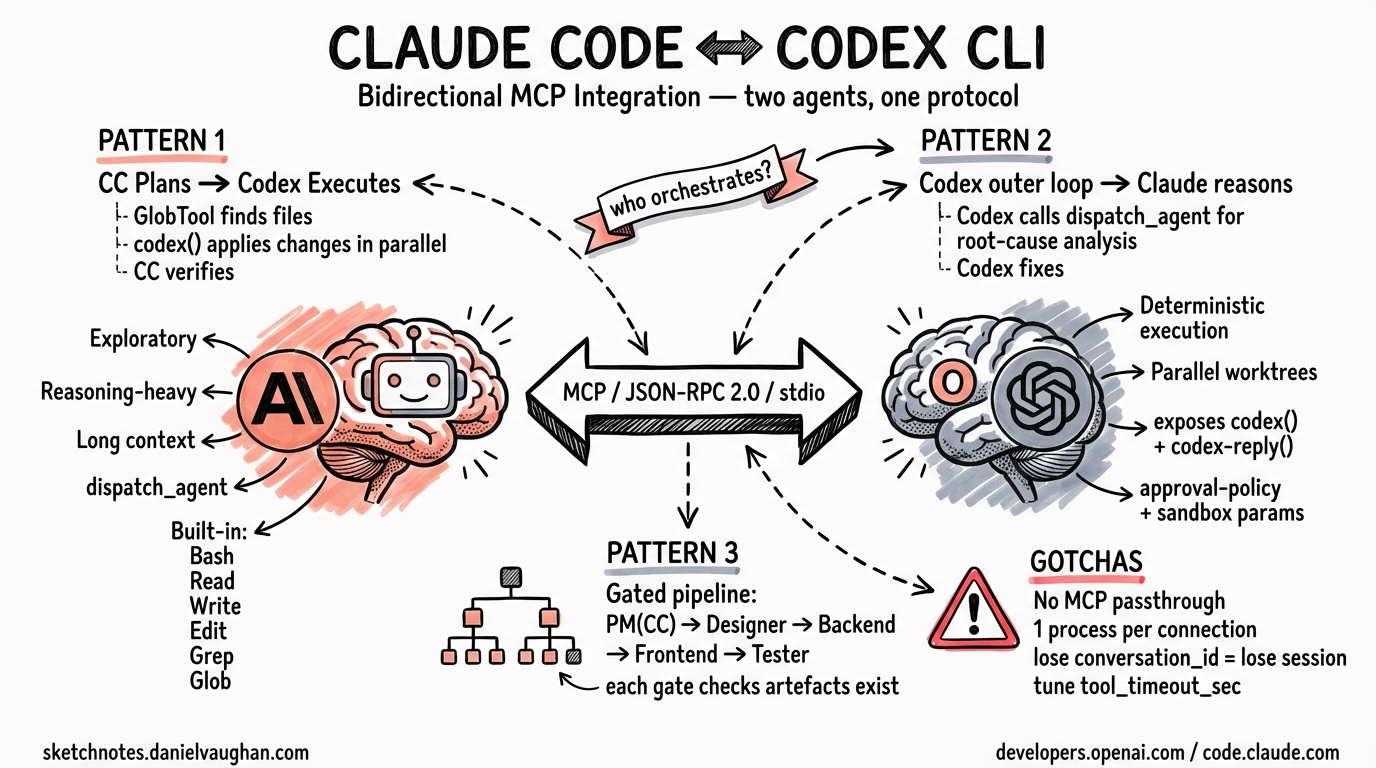

Sketchnote: Claude Code to Codex Bidirectional MCP

Sketchnote

Claude Code ↔ Codex CLI: Bidirectional MCP Integration

The Model Context Protocol (MCP) was designed as a universal interface between AI agents and external tools. Both Claude Code and Codex CLI have adopted it — not just as clients that consume tool servers, but as servers that expose their own capabilities to other agents. This creates a practical basis for cross-tool orchestration: a Claude Code session can delegate execution to Codex CLI, and vice versa, with both communicating over the same JSON-RPC 2.0 / stdio channel.

This article documents how to configure each tool in both roles, what tools each exposes, and three concrete orchestration patterns that emerge from connecting them.

Why Run Both Tools?

Claude Code and Codex CLI are complementary in character. Running them in isolation leaves value on the table.

Claude Code is optimised for exploratory, reasoning-heavy work. It maintains long conversational context, reasons about multi-file architectures, produces detailed plans, and is strong at tasks where the right answer isn’t obvious before you start. Its built-in tools (Bash, Read, Write, Edit, Grep, Glob, dispatch_agent) cover the full development lifecycle but are oriented toward single-session depth.

Codex CLI is optimised for deterministic execution. It can fan out across multiple worktrees simultaneously, apply well-specified changes to files rapidly, and is designed for “given this spec, do this work” tasks where the instruction is clear and the output is verifiable. Its MCP server mode exposes a stateful conversation API (codex() and codex-reply()) that clients can drive programmatically.

The practical division of labour that emerges: Claude Code handles planning, decomposition, and reasoning about ambiguity; Codex CLI handles parallel execution of well-defined sub-tasks. MCP is the channel between them.

Architecture Overview

graph TD
    subgraph Claude Code Session
        CC[Claude Code\nOrchestrator]
        CC_TOOLS[Built-in Tools\nBash · Read · Write · Edit\nGrep · Glob · dispatch_agent]
    end

    subgraph Codex CLI Process
        CX[Codex CLI\nMCP Server]
        CX_TOOLS[Exposed Tools\ncodex · codex-reply]
    end

    subgraph Codex CLI Session
        CC2[Codex CLI\nOrchestrator]
        CC2_TOOLS[Built-in Tools\nfile ops · shell · worktrees]
    end

    subgraph Claude Code Process
        CX2[Claude Code\nMCP Server]
        CX2_TOOLS[Exposed Tools\nBash · Read · Write · Edit\nGrep · Glob · dispatch_agent]
    end

    CC -->|"codex(prompt, ...)"| CX
    CX -->|result| CC
    CC2 -->|JSON-RPC over stdio| CX2
    CX2 -->|tool results| CC2

    CC -.->|also uses| CC_TOOLS
    CX -.->|exposes| CX_TOOLS
    CC2 -.->|also uses| CC2_TOOLS
    CX2 -.->|exposes| CX2_TOOLS

Two independent integration directions are possible:

  • Claude Code as client, Codex CLI as server — Claude Code adds Codex CLI as an MCP server in .mcp.json or via claude mcp add. Codex CLI is launched as a subprocess and communicates over stdio.
  • Codex CLI as client, Claude Code as server — Codex CLI adds Claude Code as an MCP server in ~/.codex/config.toml. Claude Code runs via claude mcp serve and receives calls from Codex.

Both directions are valid. Which you use depends on which tool should own the orchestration loop.

Setting Up Codex CLI as an MCP Server

How Codex Exposes Itself

Codex CLI starts in MCP server mode with a single command:

codex mcp-server

Or, when invoked as a subprocess by an MCP client:

npx -y codex mcp-server

The server communicates over stdio using JSON-RPC 2.0. It exposes exactly two tools:

Tool Purpose
codex(prompt, ...) Start a new Codex conversation
codex-reply(conversation_id, prompt, ...) Continue an existing Codex conversation

Both tools accept parameters that control Codex’s execution behaviour:

  • approval-policy: Set to "never" to allow Codex to apply file changes without interactive confirmation. Useful in automated pipelines.
  • sandbox: Set to "workspace-write" to confine Codex to the current workspace directory.

A full invocation with those options looks like:

{
  "tool": "codex",
  "arguments": {
    "prompt": "Refactor auth.ts to use the repository pattern",
    "approval-policy": "never",
    "sandbox": "workspace-write"
  }
}

Connecting Claude Code to Codex CLI

Add Codex CLI as an MCP server in your project’s .mcp.json (placed in the project root):

{
  "mcpServers": {
    "codex": {
      "type": "stdio",
      "command": "npx",
      "args": ["-y", "codex", "mcp-server"]
    }
  }
}

Or register it at user scope (available across all projects) via the CLI:

claude mcp add codex --scope user -- npx -y codex mcp-server

Verify the connection is live from inside a Claude Code session:

/mcp

You should see codex listed with its two available tools.

Environment Variables for the Codex Subprocess

If Codex needs an API key or a specific model, pass it through the MCP server config:

{
  "mcpServers": {
    "codex": {
      "type": "stdio",
      "command": "npx",
      "args": ["-y", "codex", "mcp-server"],
      "env": {
        "OPENAI_API_KEY": "sk-...",
        "CODEX_MODEL": "o4-mini"
      }
    }
  }
}

The env block is passed directly to the subprocess environment. Do not commit API keys in .mcp.json; use shell environment variable interpolation or a secrets manager instead.

Setting Up Claude Code as an MCP Server

How Claude Code Exposes Itself

Claude Code runs in MCP server mode with:

claude mcp serve

This launches a headless Claude Code process that listens for client connections on stdio. It exposes the following tools to connecting clients:

Tool Purpose
Bash Execute shell commands in the project environment
Read Read file contents
Write Write new file contents
Edit Apply targeted edits to existing files
LS List directory contents
GrepTool Search file contents by regex
GlobTool Find files by pattern
Replace Find and replace across files
dispatch_agent Delegate to a Claude sub-agent

Important constraint: MCP servers that Claude Code itself has configured are not forwarded to clients. Each MCP layer is independent — there is no passthrough. If Claude Code connects to a GitHub MCP server, a client connecting to Claude Code cannot use GitHub tools directly through that path.

First-Run Permission Grant

Before Claude Code can operate headlessly, it needs a one-time permission grant. Run this once in the target project:

claude --dangerously-skip-permissions

Accept the permissions prompt, then exit. This records the grant so subsequent claude mcp serve invocations can run without interactive approval.

Connecting Codex CLI to Claude Code

Add Claude Code as an MCP server in ~/.codex/config.toml (global) or .codex/config.toml (project-scoped, requires trust):

[mcp_servers.claude-code]
command = "claude"
args = ["mcp", "serve"]
startup_timeout_sec = 30
tool_timeout_sec = 120

Increase tool_timeout_sec if Claude Code tasks involve long-running Bash commands or multi-file rewrites.

To restrict which Claude Code tools Codex can call:

[mcp_servers.claude-code]
command = "claude"
args = ["mcp", "serve"]
enabled_tools = ["Read", "GrepTool", "GlobTool"]

To disable the server without removing its config:

[mcp_servers.claude-code]
command = "claude"
args = ["mcp", "serve"]
enabled = false

Practical Orchestration Patterns

Pattern 1: Claude Code Plans, Codex Executes in Parallel

Claude Code decomposes a large refactoring task into discrete, well-specified sub-tasks. For each sub-task, it calls codex() with approval-policy: never. Multiple Codex calls can be issued sequentially (or, if the orchestrator supports it, in parallel across worktrees).

Example flow inside a Claude Code session:

User: "Migrate all Express route handlers in /src/routes to use the new error middleware pattern."

Claude Code:
1. Uses GlobTool to enumerate all files in /src/routes
2. Uses Read to understand the current pattern in each file
3. For each file, calls codex() with:
   - prompt: "Refactor [filename] to use the new error middleware. Wrap all async handlers in asyncHandler(). Import it from '../middleware/async'."
   - approval-policy: "never"
   - sandbox: "workspace-write"
4. Verifies each result with Read before proceeding

This keeps Claude Code in a supervisory role — it reasons about the migration strategy and validates results — while Codex handles the mechanical application of changes.

Pattern 2: Codex Orchestrates, Claude Code Reasons

Invert the direction: Codex CLI runs as the outer loop, delegating reasoning-heavy tasks to Claude Code’s dispatch_agent or file analysis tools.

A ~/.codex/config.toml configuration for this pattern:

[mcp_servers.claude-code]
command = "claude"
args = ["mcp", "serve"]
startup_timeout_sec = 30
tool_timeout_sec = 300
enabled_tools = ["Read", "GrepTool", "GlobTool", "Bash", "dispatch_agent"]

Example use case: Codex is running a test suite in a CI-like loop. When a test fails, it calls Claude Code’s dispatch_agent to reason about the failure, identify the root cause across multiple files, and return a structured diagnosis. Codex then applies the fix.

Pattern 3: Multi-Agent Pipeline with Gated Handoffs

This pattern mirrors the architecture documented in the OpenAI Agents SDK cookbook. A Project Manager agent (running in Claude Code) decomposes work and gates handoffs between specialised agents:

Project Manager (Claude Code)
  ├── calls codex("Design the data model for X") → Designer artifact
  ├── [gate: verify artifact exists]
  ├── calls codex("Implement the backend based on the design") → Backend artifact
  ├── [gate: verify artifact exists]
  ├── calls codex("Implement the frontend") → Frontend artifact
  ├── [gate: verify artifact exists]
  └── calls codex("Write and run tests for all components") → Test results

Each Codex call is stateful via codex-reply() if a conversation needs to continue. The gate checks (using Claude Code’s Read or Bash tools) verify that each phase produced the expected output before the next phase begins. This prevents cascading failures where a broken backend silently propagates into a frontend implementation.

Configuration Reference

Claude Code Side: .mcp.json

Place in the project root. Used to register Codex CLI as a server that Claude Code calls.

{
  "mcpServers": {
    "codex": {
      "type": "stdio",
      "command": "npx",
      "args": ["-y", "codex", "mcp-server"],
      "env": {
        "OPENAI_API_KEY": "${OPENAI_API_KEY}",
        "CODEX_QUIET_MODE": "1"
      }
    }
  }
}

Config scopes available via claude mcp add:

Scope Flag Storage location Visibility
local (default) --scope local ~/.claude.json (project entry) Current user, current project
project --scope project .mcp.json in project root All users of the project
user --scope user ~/.claude.json (global entry) Current user, all projects

Codex Side: ~/.codex/config.toml

Used to register Claude Code as a server that Codex calls.

# Global Codex configuration
# ~/.codex/config.toml

[mcp_servers.claude-code]
command = "claude"
args = ["mcp", "serve"]
startup_timeout_sec = 30
tool_timeout_sec = 120
# enabled_tools = ["Read", "GrepTool", "GlobTool"]   # optional allowlist
# disabled_tools = ["Bash"]                           # optional denylist
# required = true                                     # fail startup if server unavailable

[mcp_servers.claude-code.env]
# Pass any env vars needed by the Claude Code subprocess
# ANTHROPIC_API_KEY = "sk-ant-..."  # usually inherited from environment

Full mcp_servers field reference:

Field Type Default Description
command string — Launcher command (stdio servers)
args array<string> [] Arguments passed to command
cwd string — Working directory for subprocess
env map<string,string> — Environment variables forwarded to subprocess
url string — Endpoint URL (HTTP servers only)
bearer_token_env_var string — Env var name holding bearer token (HTTP)
enabled_tools array<string> all Allowlist of tool names
disabled_tools array<string> none Denylist applied after allowlist
enabled boolean true Disable without removing config
required boolean false Abort startup if server fails to init
startup_timeout_sec number 10 Seconds to wait for server process to start
tool_timeout_sec number 60 Seconds to wait for a single tool call

Limitations and Gotchas

No MCP passthrough in Claude Code. When Claude Code runs as an MCP server, it exposes only its own built-in tools. Any MCP servers that Claude Code itself is configured to use (GitHub, Postgres, etc.) are not accessible to the connecting client. Each layer of the stack is isolated.

One process per client connection. Each time an MCP client connects to claude mcp serve, a new Claude Code process is spawned. There is no shared state between connections. This is correct for stateless tool calls but means you cannot maintain a single Claude Code “session” across multiple calls from an external orchestrator.

Codex MCP server conversation state. Codex’s codex() tool returns a conversation_id. Pass this to subsequent codex-reply() calls to continue the same conversation. If you lose the ID, the conversation is inaccessible — there is no way to list or resume previous sessions.

Timeout tuning is critical. The default tool_timeout_sec in Codex config is 60 seconds. Claude Code tasks involving compilation, test runs, or multi-file rewrites routinely exceed this. The OpenAI cookbook examples use client_session_timeout_seconds=360000. For production use, set tool_timeout_sec to at least 300 in your config.toml. Similarly, when calling codex() from Claude Code, Claude Code’s own timeout settings apply to the MCP call.

TOML syntax errors affect both CLI and IDE. Codex CLI and the VS Code Codex extension share ~/.codex/config.toml. A syntax error breaks both simultaneously. Validate your TOML before saving (e.g., python3 -c "import tomllib; tomllib.load(open('config.toml','rb'))").

approval-policy: never removes human oversight. When calling codex() with "approval-policy": "never", Codex applies all file changes without confirmation. This is necessary for automated pipelines but eliminates the safety net that interactive approval provides. Pair it with "sandbox": "workspace-write" to at minimum confine writes to the workspace directory.

Claude Code’s --dangerously-skip-permissions is required for headless operation. This flag is a one-time grant, not a persistent mode. However, its name signals real risk: granting it means the process can execute arbitrary Bash commands without per-call approval. Use it only in trusted, sandboxed environments.

Version requirements. Codex MCP server mode (codex mcp-server) was introduced in the Rust rewrite of Codex CLI. The legacy TypeScript implementation does not include it. Ensure you are running the current Rust-based Codex CLI. Check with codex --version. WebSocket transport for the Codex app server (relevant for remote connections) arrived in v0.117.0.

Project-scoped Codex config requires trust. .codex/config.toml at the project level is only loaded for projects that Codex has explicitly marked as trusted. Global config (~/.codex/config.toml) is always loaded.
