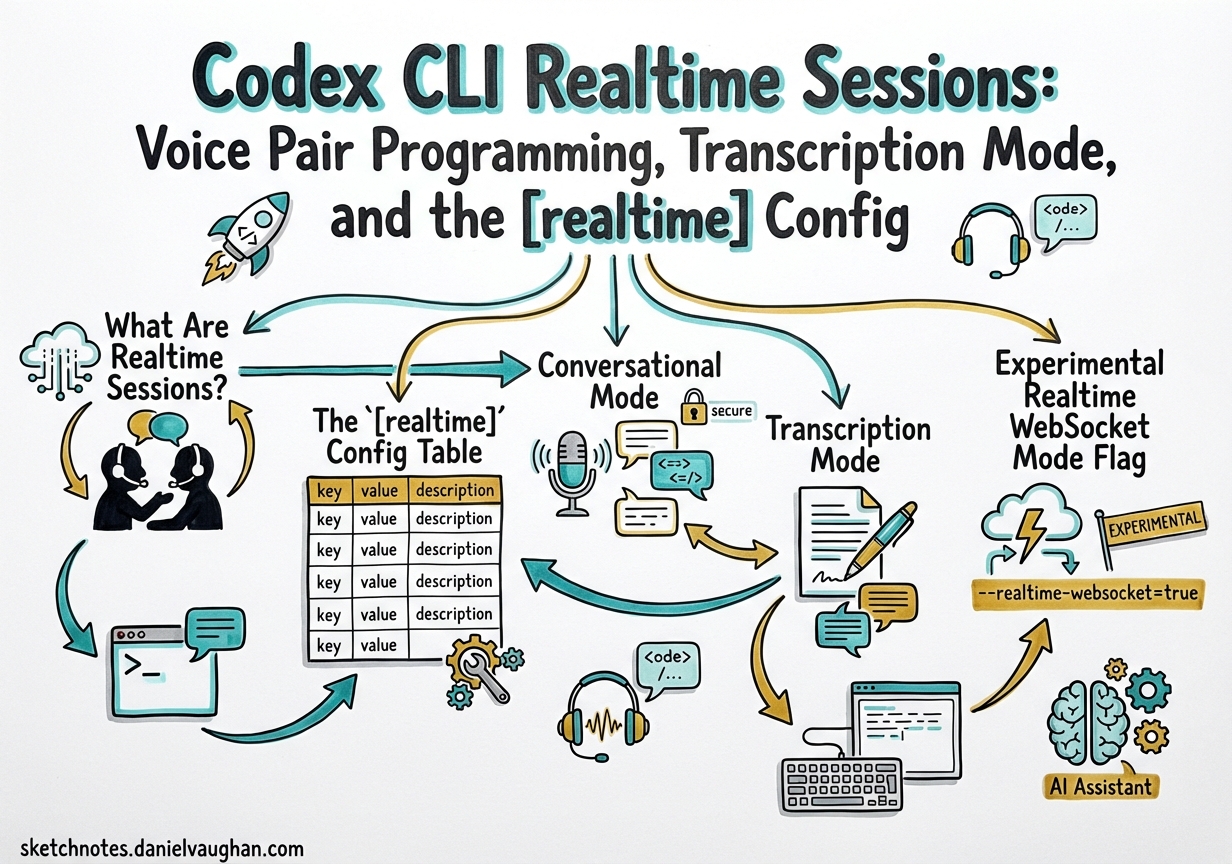

Sketchnote: Codex CLI Realtime Sessions: Voice Pair Programming, Transcription Mode, and the [realtime] Config

Codex CLI Realtime Sessions: Voice Pair Programming, Transcription Mode, and the [realtime] Config

Codex CLI’s realtime session layer has matured significantly over the past few weeks. Two PRs — #14556 and #14606, both merged on 13 March 2026 — unified the previously fragmented realtime configuration under a single [realtime] TOML table and introduced a dedicated transcription mode alongside the existing conversational mode.¹ This article unpacks what that means architecturally, how to configure each mode, and how to build practical voice pair-programming and live-transcription workflows on top of them.

What Are Realtime Sessions?

Codex CLI’s realtime sessions are persistent WebSocket connections to OpenAI’s Realtime API that carry audio (or text) at low latency alongside the normal agentic loop.² Unlike standard turn-based API calls, a realtime session keeps the connection open so audio streams in both directions without per-request round-trip overhead.

The Codex app has exposed these sessions through its TUI since early 2026, but the configuration surface was split across a realtime_conversation_v2 feature flag and several ad hoc keys. PR #14606 removed the feature flag entirely and consolidated everything under [realtime].³

flowchart LR
    subgraph CLI["Codex CLI (app-server TUI)"]
        A[User audio / text input]
        B[Realtime session manager]
        C[Agentic loop / tool execution]
    end
    subgraph OAI["OpenAI Realtime API"]
        D[WebSocket endpoint]
        E[response.output_audio.delta events]
    end
    A -->|mic stream| B
    B <-->|WebSocket| D
    D -->|audio delta events| E
    E -->|playback| A
    B <-->|tool calls| C

The `[realtime]` Config Table

Add a [realtime] block to your ~/.codex/config.toml (or a profile-scoped file) to configure session behaviour:⁴

[realtime]
version = "v2"
type    = "conversational"   # or "transcription"

Both keys are optional — omitting them leaves Codex on its compiled defaults, which as of v0.116.0 are v2 conversational.⁵

Key	Values	Default	Notes
`version`	`"v1"`, `"v2"`	`"v2"`	v1 forces Quicksilver intent; v2 uses structured `response.output_audio.delta` events
`type`	`"conversational"`, `"transcription"`	`"conversational"`	Selects mode and payload shape (see below)

Internally, the Rust field is session_type with #[serde(rename = "type")]⁶ so the wire format and TOML key are both type, avoiding a collision with Rust’s reserved keyword.

v1 vs v2

v1 sessions use the Quicksilver intent path and an older session-update payload shape. v2 sessions emit response.output_audio.delta events and carry the Codex tool unconditionally, which enables tool calls (file edits, shell commands) during audio turns.⁷ Prefer v2 for all new work.

Conversational Mode

The default "conversational" mode is an interactive dialogue: speech in, speech out, with interleaved tool execution. Codex can read, write, and run code while talking through what it is doing.

[realtime]
version = "v2"
type    = "conversational"

Context Initialisation

A key reliability fix shipped in v0.116.0: realtime sessions now initialise with the recent thread context from the current project.⁸ Previously, a voice session started cold and Codex had no knowledge of previous turns in the same thread, causing it to ask for context that was already established.

The session manager now serialises recent conversation history into the session initialisation payload, so you can say “carry on with the refactoring we discussed” and Codex will have the context.

Self-Interruption Prevention

Older versions could self-interrupt: Codex would start speaking, receive its own audio output back through the microphone, and treat it as new user input. v0.116.0 addressed this with backpressure and silence detection during audio playback.⁹ The fix reduces spurious mid-sentence interruptions in environments without push-to-talk.

WebSocket Prewarm Stall Fix

v0.117.0 fixed a first-turn stall where WebSocket prewarm could delay turn/start; startup now times out and falls back cleanly.¹⁰ If you saw a silent pause of several seconds before the first exchange, upgrading to v0.117.0 resolves it.

Transcription Mode

"transcription" mode is purpose-built for workflows where you want speech-to-text output piped into the agentic loop rather than a full audio dialogue. You speak; Codex produces text; the agentic loop processes that text as a normal user message.

[realtime]
version = "v2"
type    = "transcription"

Under the hood, PR #14556 changed the session-update payload shape and switched the conversation item type from audio to input_text for user turns.¹¹ This means the language model processes your speech as text, not as audio tokens, which reduces latency and token cost.

The Quicksilver intent is also suppressed for v2 transcription mode — critical because Quicksilver would otherwise short-circuit structured tool use.¹²

When to Use Transcription Mode

Scenario	Recommended Mode
Voice pair programming — spoken back-and-forth with Codex	`conversational`
Hands-free dictation of tasks while reviewing code	`transcription`
Meeting transcription → action-item extraction	`transcription`
Accessibility: eyes-free coding in complex codebases	`conversational`
CI/CD pipeline that accepts spoken task descriptions	`transcription`

Transcription mode is also the right choice when running Codex in environments without speakers or audio output capability — Docker containers, remote dev boxes, CI agents. Only the microphone-side WebSocket is required.

Experimental Realtime WebSocket Mode Flag

The low-level flag that PR #14556 introduced — experimental_realtime_ws_mode — is a runtime selector that PR #14606 later wired to the type TOML key.¹³ You should not need to set it directly; use type in [realtime] instead. It remains in the codebase as the internal enum the session manager dispatches on.

v0.116.0 added device-code ChatGPT sign-in to the app-server TUI onboarding flow.¹⁴ This matters for realtime sessions because ChatGPT credentials (Plus/Pro/Team/Enterprise) unlock the model-specific realtime usage limits, which are separate from standard Codex limits during the research preview.

If you are setting up a remote or headless machine where the browser cannot be opened automatically:

codex login --device-auth

The TUI prints a URL and a code. Open the URL on any device, enter the code, and the session is authenticated. Existing ChatGPT tokens can be refreshed through the same flow without full re-authentication.

Remote WebSocket Sessions

App-server clients can connect to a remote Codex instance via WebSocket with bearer-token auth:¹⁵

# On the remote server
codex app-server --listen ws://0.0.0.0:8765 \
  --ws-shared-secret-file /run/secrets/codex-ws-secret

# On the client
codex --ws ws://remote-host:8765 \
  --ws-auth signed-bearer-token

The server exposes health probes on the same listener:

GET /readyz   → 200 when ready to accept connections
GET /healthz  → 200 when the process is healthy

When the request ingress queue is full, the server returns JSON-RPC error -32001 (“Server overloaded; retry later”). Implement exponential backoff with jitter on the client side.¹⁶

Practical Voice Pair-Programming Setup

config.toml

[realtime]
version = "v2"
type    = "conversational"

[model]
model = "gpt-5-codex"

[features]
prevent_idle_sleep = true   # keep the session alive between turns

AGENTS.md Addition for Voice Sessions

Add a section that helps Codex handle voice-specific patterns:

## Voice session conventions
- Confirm destructive actions aloud before executing
- Summarise each completed file edit in one sentence
- If interrupted mid-sentence, restart the previous thought on next user turn
- Prefer short confirmations over long explanations when the task is clear

Transcription Pipeline Pattern

sequenceDiagram
    participant Dev as Developer (microphone)
    participant RT as Realtime session (transcription)
    participant Loop as Agentic loop
    participant FS as Filesystem

    Dev->>RT: "Run the tests for the auth module"
    RT->>Loop: input_text: "Run the tests for the auth module"
    Loop->>FS: shell: cargo test auth --
    FS-->>Loop: test output (6 passed, 1 failed)
    Loop-->>Dev: "Six tests passed, one failed in token_refresh_test"

v2 Handoff in Realtime Sessions

v0.117.0 shipped realtime transcript notifications for v2 sessions: the transcript context is now carried through handoffs, so if you hand a session off from local CLI to the Codex app (or vice versa), the new session initialises with the audio transcript history.¹⁷ This closes a gap where handoffs previously lost all voice context and the agent appeared to forget the conversation.

Known Limitations

Transcription accuracy: The Realtime API’s speech-to-text path uses Whisper v3 under the hood. ⚠️ Technical terms, symbol names, and unusual identifiers may be misrecognised. Use transcription mode with a custom system prompt asking Codex to clarify any ambiguous symbol name before acting on it.
No Windows support in v0.117.0: Realtime sessions on Windows require the Desktop app, not the CLI TUI. ⚠️ CLI support for Windows realtime was not available at the time of writing.
Context window limits: Realtime sessions accumulate transcript tokens in the context. Long voice sessions will trigger the standard context compaction path (see the compaction article). The compact_prompt should be written with voice transcript preservation in mind.
Model availability: Realtime voice sessions require a paid ChatGPT plan. API key–only setups cannot use the voice path; they fall back to text mode automatically.

Summary

The [realtime] TOML config block (merged 13 March 2026) gives you a clean, forward-looking surface to configure Codex voice sessions. Use type = "conversational" for interactive voice pair programming, type = "transcription" for dictation and speech-to-text task pipelines. The v0.116.0 and v0.117.0 reliability fixes — context initialisation, self-interruption prevention, prewarm stall — make voice sessions production-worthy for focused coding sessions. Combine with prevent_idle_sleep, a voice-aware AGENTS.md, and bearer-token remote WebSocket for a fully headless voice agent architecture.

Citations

Pull Request #14556 “Add realtime transcription mode for websocket sessions” — github.com/openai/codex/pull/14556; Pull Request #14606 “Unify realtime v1/v2 session config” — github.com/openai/codex/pull/14606 ↩
OpenAI Realtime API documentation — developers.openai.com/api/docs/guides/realtime ↩
PR #14606 description: “removes realtime_conversation_v2 feature flag, consolidating its functionality into the new configuration structure” — github.com/openai/codex/pull/14606 ↩
Codex Configuration Reference — developers.openai.com/codex/config-reference ↩
Releasebot Codex March 2026 release notes: v0.116.0 shipped with improved realtime defaults — releasebot.io/updates/openai/codex ↩
PR #14606: “uses session_type internally with #[serde(rename = \"type\")] for both runtime and TOML structs” — github.com/openai/codex/pull/14606 ↩
OpenAI Codex Changelog — developers.openai.com/codex/changelog ↩
Releasebot Codex v0.116.0 entry: “Realtime sessions now start with recent thread context” — releasebot.io/updates/openai/codex ↩
OpenAI Codex Changelog v0.116.0: reduced self-interruption during audio playback — developers.openai.com/codex/changelog ↩
OpenAI Codex Changelog v0.117.0: “fixed first-turn stall where WebSocket prewarm could delay turn/start; startup now times out and falls back cleanly” — developers.openai.com/codex/changelog ↩
PR #14556: “for v2 sessions in transcription mode, the system emits input_text conversation items for user messages” — github.com/openai/codex/pull/14556 ↩
PR #14556: “WebSocket intent queries become parser-aware, preventing v2 transcription mode from forcing Quicksilver intent” — github.com/openai/codex/pull/14556 ↩
PR #14606 wired experimental_realtime_ws_mode enum to the type TOML key — github.com/openai/codex/pull/14606 ↩
OpenAI Codex Changelog v0.116.0: “App-server TUI supports device-code ChatGPT sign-in during onboarding and can refresh existing ChatGPT tokens” — developers.openai.com/codex/changelog ↩
Codex App-Server documentation — developers.openai.com/codex/app-server ↩
Codex App-Server documentation: JSON-RPC error -32001 “Server overloaded; retry later” — developers.openai.com/codex/app-server ↩
OpenAI Codex Changelog v0.117.0: “realtime transcript notification in v2” with handoff context preservation — developers.openai.com/codex/changelog ↩
