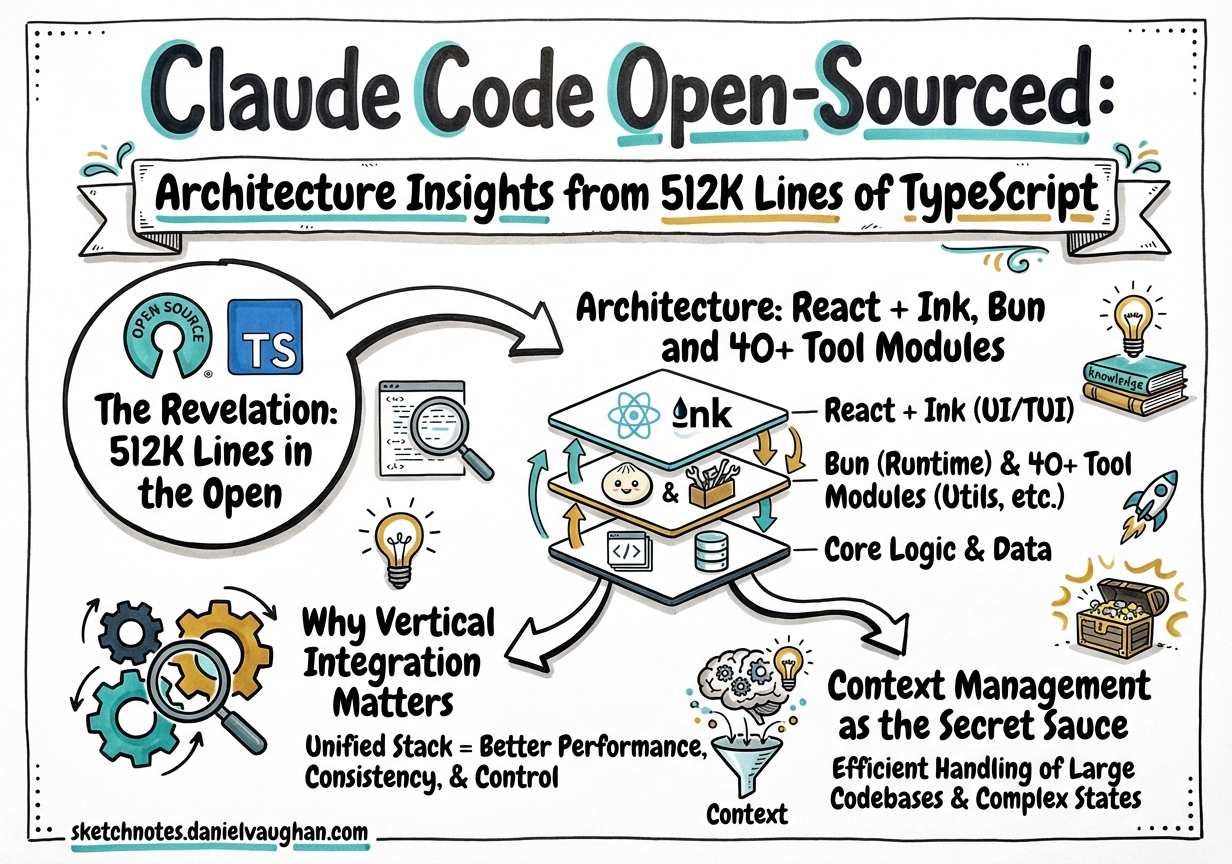

Claude Code Open-Sourced: Architecture Insights from 512K Lines of TypeScript

Source: r/ClaudeCode — “Now that it’s open source, we can see why Claude Code is so good” Author: Community analysis Date saved: 2026-04-01 Content age: Current

Summary

When Anthropic open-sourced Claude Code in late March 2026, the developer community finally got a clear look at the engineering behind one of the most capable agentic coding tools on the market. What they found was roughly 512,000 lines of TypeScript — a sprawling, vertically integrated system built on React and Ink for the terminal UI, running on the Bun runtime, and orchestrating more than 40 tool modules. The Reddit discussion that followed became one of the most technically substantive threads in r/ClaudeCode’s history, with engineers dissecting everything from the context management strategy to the thinking-token optimisation that makes Claude Code’s agent loop feel uncannily focused. This article distils those findings and draws out the implications for Codex CLI users and book readers.

The Revelation: 512K Lines in the Open

The open-sourcing of Claude Code was not a carefully staged developer-relations event. It followed an accidental source-map leak that exposed the codebase via a bundled .map file in the npm package, after which Anthropic chose to make the repository officially public. The number that caught everyone’s attention was the sheer scale: approximately 512,000 lines of TypeScript, far larger than what most developers expected from a CLI tool.

That figure includes the full agent loop, all tool implementations, the terminal rendering layer, internal prompt engineering, context management infrastructure, and test suites. For context, the entire Codex CLI codebase (including codex-rs, the Rust rewrite) is considerably smaller. Claude Code is not a thin wrapper around an API — it is a full application platform that happens to run in a terminal.

The community reaction was split. Some engineers were impressed by the ambition and the sophistication of the internal abstractions. Others pointed to areas of technical debt — a single React component (REPL.tsx) that stretched to thousands of lines, deep nesting in the print module, and sections where the architecture had clearly evolved faster than it had been refactored. Both reactions are informative: Claude Code works as well as it does not because the code is pristine, but because the architectural decisions at the system level are sound.

Architecture: React + Ink, Bun, and 40+ Tool Modules

The technology stack is unusual for a CLI tool and worth understanding in detail.

React and Ink for terminal UI. Claude Code renders its terminal interface using Ink, a React renderer for the command line. This means the entire TUI — spinners, streaming output, tool-call panels, diff views — is built with React components, hooks, and state management. The advantage is composability: the same component model that powers web applications handles the complex, stateful rendering of an agent session. The disadvantage is bundle size and startup cost, though the Bun runtime mitigates much of this.

Bun as the runtime. Rather than Node.js, Claude Code runs on Bun, Jarred Sumner’s all-in-one JavaScript runtime. Bun provides faster startup times, a built-in bundler, and native TypeScript execution without a separate compilation step. For an interactive CLI that users launch dozens of times a day, the reduced cold-start latency is noticeable. Bun also simplifies the build pipeline — there is no Webpack or esbuild configuration to maintain.

40+ tool modules. The agent loop dispatches to more than 40 discrete tool implementations: file reading, file writing, shell command execution, search (both grep-style and semantic), directory listing, diff application, browser automation, and many more. Each tool is a self-contained module with its own parameter validation, error handling, and output formatting. This modular design means new capabilities can be added without touching the core agent loop — a pattern that Codex CLI users will recognise from the plugin and hooks systems.

Why Vertical Integration Matters

The single most important architectural insight from the open-source release is the depth of vertical integration. Claude Code is not a generic agent framework wired to a generic model. It is a system where the model, the tools, the prompt engineering, and the user interface are all designed together by the same company.

This matters for three reasons:

Zero-friction tool calling. The model knows exactly what tools are available, what their parameter schemas look like, and what output format to expect. There is no impedance mismatch between the model’s expectations and the tool implementations. When Claude decides to read a file, it does not need to guess at the tool’s interface — the interface was designed around the model’s strengths.
Prompt engineering that matches the model’s training. The system prompts, tool descriptions, and few-shot examples inside Claude Code are tuned specifically for Claude’s instruction-following characteristics. Generic agent frameworks must write prompts that work across multiple models; Claude Code can exploit model-specific behaviours.
UI that reflects model capabilities. The Ink-based terminal interface knows when the model is thinking, when it is about to call a tool, and when it needs user approval. This tight coupling between the rendering layer and the agent loop creates the seamless experience that users describe as “it just works.”

For Codex CLI users, the lesson is that vertical integration is a spectrum. OpenAI’s control over the Codex models, the Responses API, and the CLI itself provides a similar (though not identical) advantage. The tools that feel the best are the ones where the model provider and the tool builder are the same entity, or at least deeply aligned.

Context Management as the Secret Sauce

The Reddit thread repeatedly identified context management as the feature that separates Claude Code from less capable agent tools. “It doesn’t lose the plot” was a phrase that appeared multiple times.

The open-source code reveals how this works in practice. Claude Code maintains a structured context window that includes:

The system prompt, which sets the agent’s identity, constraints, and available tools.
A compressed history of the conversation, where earlier exchanges are summarised to free up token budget for recent context.
Tool call results, which are included verbatim when recent but summarised or dropped when older.
File content caches, so that files read earlier in the session do not need to be re-read unless they have changed.
A planning state, which tracks the current task, sub-tasks, and progress — essentially an internal to-do list that persists across turns.

This is not conceptually different from what Codex CLI does with its context compaction system, but the implementation details matter. Claude Code’s context management is tuned to Claude’s specific context window size (200K tokens at the time of the release) and to Claude’s tendency to attend more carefully to the beginning and end of the context window. The summarisation strategy, the order in which elements are placed in the context, and the decision about when to drop older tool results are all carefully calibrated.

For practitioners, the takeaway is that context management is not a solved problem you can ignore. Whether you use Claude Code, Codex CLI, or a custom agent harness, the quality of your context window — what you include, what you summarise, and what you drop — is the single largest determinant of agent quality on long sessions.

Planning Flow and Execution Order

Claude Code’s agent loop follows a plan-then-execute pattern that is more structured than a simple ReAct loop. When given a complex task, the model first generates a plan (visible to the user as a “thinking” phase), then executes steps one at a time, checking progress against the plan after each step.

The open-source code reveals that this planning flow is not purely emergent from the model’s reasoning. There is explicit infrastructure that:

Prompts the model to generate a structured plan before acting.
Injects the current plan state into the context on each turn.
Detects when the model has deviated from its plan and nudges it back.
Allows the model to revise the plan mid-session when new information arrives.

This is strikingly similar to how Codex CLI’s planning mode works, and to the patterns described in the Compound Engineering chapter of the book. The convergence is not accidental — both teams have independently discovered that unstructured agent loops degrade on tasks that require more than five or six tool calls. Explicit planning is the fix.

Thinking Tokens Optimised for Agent Behaviour

One of the more subtle findings from the source code is how Claude Code uses “thinking” tokens — the extended reasoning that Claude performs before generating a visible response. The system prompt explicitly instructs the model to use its thinking phase for:

Analysing the current state of the codebase.
Evaluating which tool to call next and why.
Considering edge cases and potential errors before writing code.
Reviewing its own plan for consistency.

This is not the same as asking the model to “think step by step.” It is a structured use of the thinking budget that is specifically optimised for agent behaviour rather than question-answering. The thinking tokens are directed toward tool selection, error anticipation, and plan maintenance rather than general chain-of-thought reasoning.

For Codex CLI users, the equivalent concept is reasoning effort tuning — adjusting how much computation the model spends on thinking before acting. The insight from Claude Code is that the content of the thinking matters as much as the amount. Directing the model’s reasoning toward agent-specific concerns (what tool, what parameters, what could go wrong) produces better results than generic reasoning prompts.

The Apple Effect: It Just Works

A recurring theme in the Reddit discussion was the comparison to Apple’s product philosophy. Claude Code, like Apple’s best products, achieves its quality not through any single breakthrough but through relentless attention to the integration between components. The terminal UI renders streaming output smoothly. Tool calls appear with clear formatting. Errors are caught and retried transparently. The diff view makes it easy to review changes before accepting them.

None of these individual features is technically remarkable. What is remarkable is that they all work together without rough edges. The open-source code shows that this polish comes from thousands of small decisions — error boundaries around every tool call, retry logic with exponential backoff, careful handling of terminal resize events, graceful degradation when tools fail.

This is the kind of engineering that is easy to underestimate and hard to replicate. It is also the kind of engineering that Codex CLI is converging toward with its app-server TUI architecture, its hooks engine, and its plugin system.

Implications for Codex CLI

The most striking finding from the Claude Code open-source release is how much the two tools have converged in their architectural patterns:

Claude Code	Codex CLI	Pattern
System prompt with tool descriptions	AGENTS.md	Behavioural instructions for the agent
40+ tool modules	Hooks + plugins + MCP servers	Extensible tool surface
React + Ink TUI	App-server TUI (Ink-based)	React-rendered terminal interface
Context compaction with summarisation	Context compaction architecture	Long-session memory management
Plan-then-execute loop	Planning mode	Structured agent reasoning
Thinking token direction	Reasoning effort tuning	Controlling model computation

This convergence is not coincidence. Both teams are solving the same fundamental problem — making a language model useful as a software engineering assistant — and the solution space is narrower than it appears. The patterns that work (explicit planning, modular tools, structured context, tight UI integration) work regardless of which model or which tool you use.

What Book Readers Should Take Away

If you are reading Codex CLI: Agentic Coding with OpenAI and wondering whether the patterns described there are specific to Codex or general to agentic coding, the Claude Code open-source release provides a clear answer: the patterns are general.

AGENTS.md is Codex CLI’s version of what Claude Code achieves through its system prompt and internal instruction set. The concept — giving the agent persistent, version-controlled behavioural instructions — works in both tools.
Hooks and plugins are Codex CLI’s version of Claude Code’s 40+ tool modules. The concept — modular, composable tool surfaces that extend the agent’s capabilities — works in both tools.
Context management is a universal concern. Whether you call it “compaction” (Codex) or “context window management” (Claude Code), the discipline of controlling what the model sees is the single most impactful skill for long agentic sessions.
Planning before execution is not optional for complex tasks. Both tools have converged on this independently.
Vertical integration creates better experiences, but you can approximate its benefits by carefully configuring your tool of choice — writing good AGENTS.md files, tuning your hooks, and choosing the right model for the task.

The open-sourcing of Claude Code is a gift to the entire agentic coding community. It confirms that the patterns are real, the engineering is substantive, and the era of agent-assisted software development is not a temporary hype cycle. Whether you build with Codex CLI, Claude Code, or both, the fundamentals are the same.

See also: Claude Code Source Leak — What It Reveals for the initial leak analysis and security implications.
