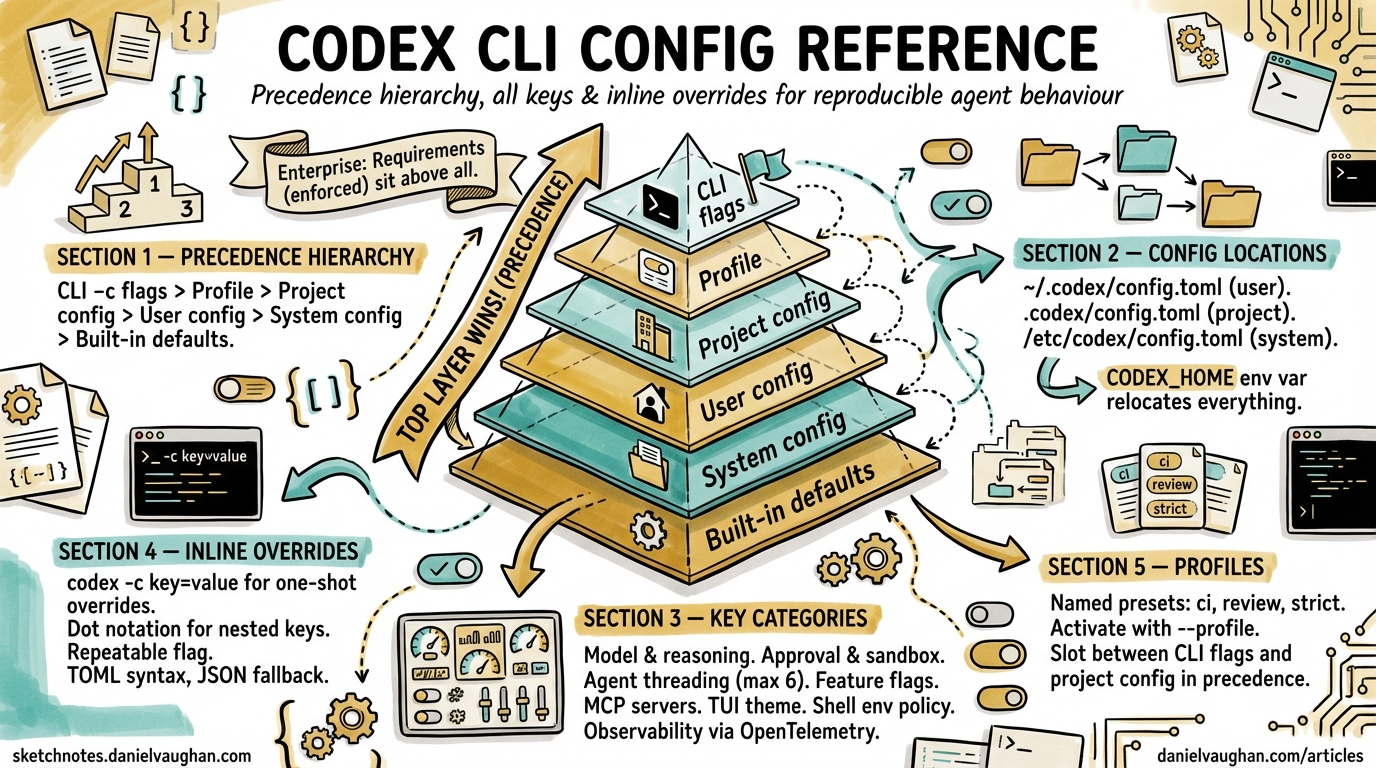

Sketchnote diagram for: Codex CLI Configuration Reference: Precedence, All Keys and Inline Overrides

Codex CLI Configuration Reference: Precedence, All Keys and Inline Overrides

Codex CLI’s behaviour is governed by a layered configuration system built on TOML files, CLI flags, environment variables, and — in enterprise environments — managed policies pushed via MDM or cloud admin consoles. Understanding the full precedence hierarchy and the complete key surface is essential for teams that need reproducible, auditable agent behaviour across developer workstations, CI runners, and cloud tasks.

This article is the authoritative quick-reference for every configuration layer Codex resolves at startup, every key you can set, and the override mechanisms available at the command line.

Configuration File Locations

Codex reads TOML configuration from four filesystem locations 12:

Scope Path Purpose
User ~/.codex/config.toml Personal defaults
Project .codex/config.toml (relative to repo root, walking towards cwd) Per-repo overrides
System /etc/codex/config.toml (Unix only) Machine-wide defaults
Built-in Compiled into the binary Fallback values

The CODEX_HOME environment variable relocates the user-level directory away from ~/.codex 3. Everything Codex persists — config, credentials, history.jsonl, the SQLite state database — lives under this root.

Project-scoped files load only when the project is trusted. If you mark a project as untrusted, Codex silently skips every .codex/config.toml it finds in the repo tree and falls back to user and system layers 1.

The Precedence Hierarchy

Codex assembles its effective configuration by merging layers top-down. The first layer to define a key wins 12:

graph TD
    A["1. CLI flags & -c overrides"] --> B["2. Profile values (--profile)"]
    B --> C["3. Project config (.codex/config.toml, closest to cwd wins)"]
    C --> D["4. User config (~/.codex/config.toml)"]
    D --> E["5. System config (/etc/codex/config.toml)"]
    E --> F["6. Built-in defaults"]

    style A fill:#e8f5e9
    style F fill:#fff3e0

When multiple .codex/config.toml files exist in nested directories, the file closest to your working directory takes precedence 2.

Enterprise Managed Layers

Organisations using ChatGPT Business, Enterprise, or macOS MDM gain two additional layers that sit above the standard hierarchy 4:

  • Requirements (requirements.toml) — admin-enforced constraints that users cannot bypass. Precedence: cloud-managed requirements → MDM requirements_toml_base64 → system /etc/codex/requirements.toml.
  • Managed defaults (managed_config.toml) — starting values users may modify during a session, reapplied at next launch. Managed defaults override even CLI --config overrides 4.
graph TD
    R["Requirements (enforced)"] --> M["Managed defaults"]
    M --> A["CLI flags & -c overrides"]
    A --> P["Profile values"]
    P --> C["Project config"]
    C --> U["User config"]
    U --> S["System config"]
    S --> D["Built-in defaults"]

    style R fill:#ffcdd2
    style M fill:#f8bbd0

Complete Config Key Reference

The tables below cover every documented key as of April 2026 56.

Model and Reasoning

Key Type Default Description
model string "gpt-5.4" Primary model identifier 5
model_provider string "openai" Provider ID (openai, ollama, lmstudio, or custom)
model_reasoning_effort string "medium" Reasoning depth: minimal, low, medium, high, xhigh
model_reasoning_summary string "auto" Summary verbosity: auto, concise, detailed, none
model_verbosity string — GPT-5 verbosity override: low, medium, high
plan_mode_reasoning_effort string — Reasoning effort override when in plan mode 3

Approval and Sandbox

Key Type Default Description
approval_policy string "untrusted" When to pause: untrusted, on-request, never 5
sandbox_mode string "read-only" Filesystem access: read-only, workspace-write, danger-full-access
permissions.<name> table — Named permission profiles with filesystem and network restrictions

Agent and Threading

Key Type Default Description
agents.max_threads integer 6 Concurrent agent worker threads 5
agents.max_depth integer 1 Maximum nesting depth for spawned sub-agents
agents.job_max_runtime_seconds integer 1800 Per-worker timeout for batch jobs

Feature Flags

Feature flags live under the [features] table and can be toggled via CLI with --enable / --disable 7:

Key Stage Default Description
features.multi_agent stable true Agent collaboration tools 5
features.unified_exec stable true PTY-backed exec tool (off on Windows)
features.web_search stable true Web search capability
features.undo experimental false Undo support
features.smart_approvals experimental false Guardian reviewer sub-agent

Tool Configuration

Key Type Default Description
tools.web_search bool / table true Web search settings; table form accepts context_size, allowed_domains 5
tools.view_image bool true Enable local image attachment
web_search string "cached" Search mode: "cached", "live", "disabled" 1

MCP Servers

MCP server definitions live under [mcp_servers.<id>] 56:

[mcp_servers.docs]
transport = "stdio"
command = "npx"
args = ["-y", "@acme/docs-mcp"]
timeout_seconds = 30

[mcp_servers.docs.tools.search]
approval_mode = "approve"

HTTP streamable transport, OAuth credentials, and per-tool approval modes are all supported. The timeout_seconds key controls how long Codex waits for the server to respond before treating the call as failed 5.

TUI and Interface

Key Type Default Description
tui.notifications bool / list true Terminal notification events
tui.theme string — Syntax highlighting theme override
tui.animations bool true Shimmer and spinner effects
tui.status_line string / list — Customise footer items or disable entirely
personality string "friendly" Communication style: "friendly", "pragmatic", "none" 1

History and Storage

Key Type Default Description
history.persistence string "save-all" Session transcript saving: "save-all", "none" 5
history.max_bytes integer — Cap history file size, dropping oldest entries
sqlite_home string CODEX_HOME Directory for state database and resumable job storage
log_dir string — Custom log file location 1

Shell Environment Policy

The [shell_environment_policy] section controls which environment variables reach sub-processes 6:

[shell_environment_policy]
inherit = "core"            # "none" | "core" | "all"
exclude = ["AWS_*", "SECRET_*"]
include = ["NODE_ENV", "CI"]

[shell_environment_policy.overrides]
LANG = "en_GB.UTF-8"

Developer and Customisation

Key Type Default Description
developer_instructions string — Additional instructions injected per session
model_instructions_file string — Custom replacement for built-in system prompt
compact_prompt string — Inline override for history compaction logic
project_doc_max_bytes integer 32768 Max bytes read from AGENTS.md 3
project_root_markers list [".git"] Files/dirs that signal project root 6

Custom Model Providers

Define additional providers under [model_providers.<name>] 6:

[model_providers.azure]
base_url = "https://my-deployment.openai.azure.com/v1"
env_key = "AZURE_OPENAI_API_KEY"
retry_limit = 3
timeout_seconds = 60

Per-provider settings include base_url, env_key, custom HTTP headers, retry limits, and timeout values. Dynamic bearer token refresh is supported for providers that require short-lived credentials 2.

Observability

Key Type Default Description
[otel] table — OpenTelemetry export configuration 6
analytics.enabled bool true Anonymous usage metrics
notify string — External notification script path for webhooks or desktop alerts

Inline Overrides with -c

The -c / --config flag accepts key=value pairs using TOML syntax and supports dot notation for nested keys 7:

# Override model for a single run
codex -c model="o4-mini" "refactor auth module"

# Set nested keys
codex -c agents.max_threads=12 -c features.undo=true "batch rename"

# Combine with --profile
codex --profile ci -c sandbox_mode="workspace-write" exec "run tests"

Values parse as JSON when possible; otherwise they are treated as literal strings. The flag is repeatable — specify -c multiple times to override several keys in one invocation 7.

Environment Variables

Key environment variables that influence Codex behaviour 238:

Variable Purpose
CODEX_HOME Relocate config/state directory (default ~/.codex)
CODEX_SQLITE_HOME Override SQLite state DB location
OPENAI_API_KEY API authentication
OPENAI_BASE_URL Custom API endpoint
CODEX_CA_CERTIFICATE Path to PEM file with custom root CA certificates
SSL_CERT_FILE Fallback CA certificate path
HTTP_PROXY / HTTPS_PROXY Route traffic through a corporate proxy

The Profile System

Profiles let you maintain named configuration presets and switch between them at the command line 6:

# ~/.codex/config.toml

model = "gpt-5.4"

[profiles.ci]
model = "o4-mini"
approval_policy = "never"
sandbox_mode = "workspace-write"
features.web_search = false

[profiles.review]
model = "gpt-5.4"
model_reasoning_effort = "high"
approval_policy = "on-request"

Activate a profile with --profile:

codex --profile ci exec "lint and fix"
codex --profile review exec review --base main

Profile values slot into the precedence hierarchy between CLI flags and project config, so a -c override still wins 1.

Debugging Effective Configuration

When configuration behaves unexpectedly, two techniques help:

  1. codex features — lists all feature flags with their resolved values and which layer set them 7.
  2. Verbose logging — set log_dir and inspect the startup log to see which config files were loaded and in what order.

For enterprise environments, regular audits comparing local config.toml against managed requirements catch drift before it causes security policy violations 4.
