Inside the Codex Sandbox: Platform-Specific Implementation on macOS, Linux and Windows

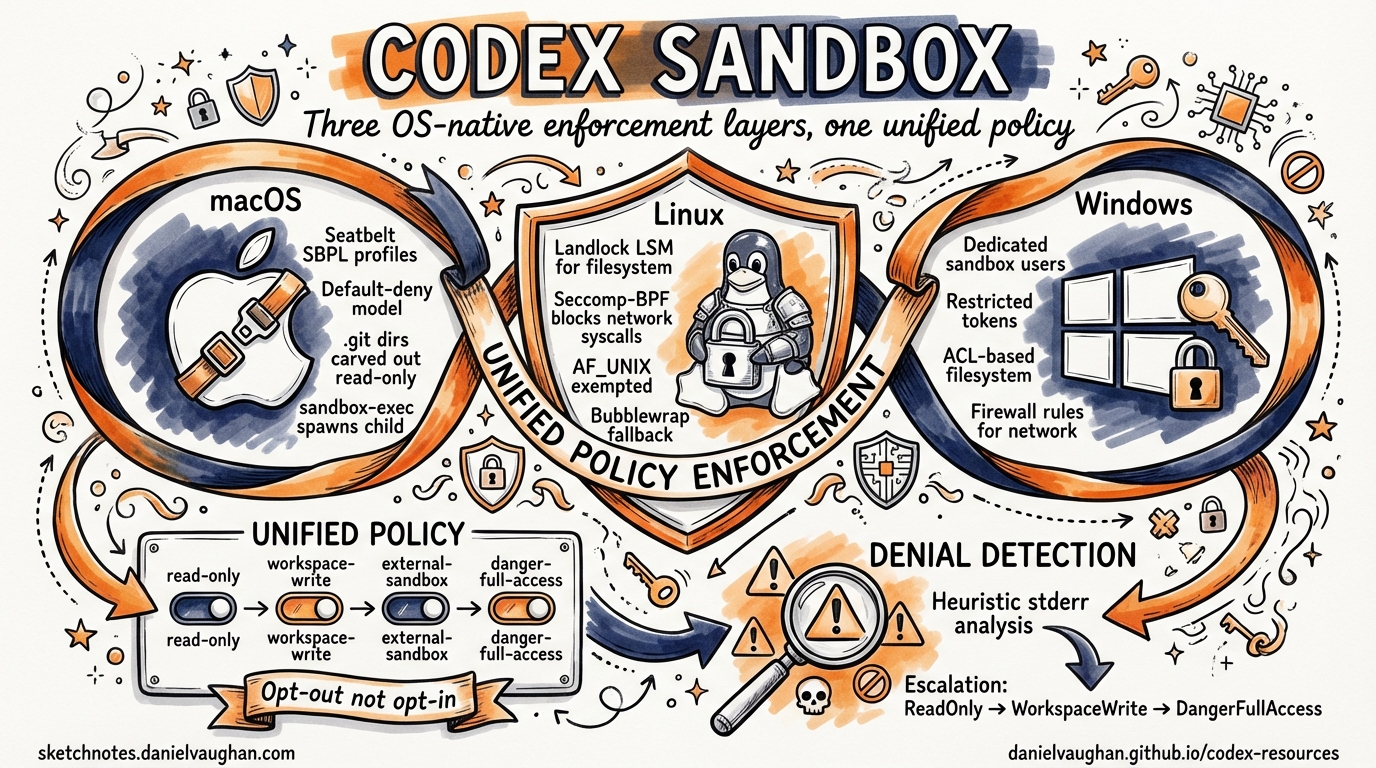

Codex CLI’s sandbox is not a single mechanism — it is three distinct OS-native enforcement layers unified behind one policy abstraction. Understanding what actually happens at the kernel level when you run a command in workspace-write mode is essential for debugging failures, auditing security boundaries, and making informed decisions about when danger-full-access is genuinely necessary. This article dissects the implementation on each platform.

The Unified Policy Layer

Every command Codex executes passes through a centralised routing system in exec.rs1. A SandboxPolicy struct specifies writable roots, network access level, and constraint flags. The SandboxManager then translates this abstract policy into platform-specific enforcement before spawning the child process2.

Four policy variants drive the system3:

Mode Filesystem Network
read-only No writes anywhere Disabled
workspace-write Writes to CWD + configured roots Disabled by default
external-sandbox No local enforcement Assumes containerisation
danger-full-access Unrestricted Unrestricted

Sandboxing is opt-out, not opt-in — the default path always applies enforcement1. The external-sandbox mode exists for CI environments where an outer container (Docker, Firecracker) already provides isolation.

flowchart TD
    A[Command Execution Request] --> B{SandboxManager}
    B --> C{Detect Platform}
    C -->|macOS| D[Seatbelt via sandbox-exec]
    C -->|Linux| E[Landlock + Seccomp via codex-linux-sandbox]
    C -->|Windows| F[Restricted Tokens + ACLs]
    D --> G[Child Process]
    E --> G
    F --> G
    G --> H{Exit Code / Stderr Analysis}
    H -->|Sandbox Denial Detected| I[Escalation Flow]
    H -->|Success| J[Return Output]
    I --> K[Request Approval]
    K --> L[Widen Policy & Retry]

macOS: Seatbelt Profiles

On macOS, Codex leverages Apple’s built-in Seatbelt framework through /usr/bin/sandbox-exec4. The core logic lives in codex-rs/core/src/seatbelt.rs and codex-rs/sandboxing/src/seatbelt.rs, with base policies defined in seatbelt_base_policy.sbpl and network rules in seatbelt_network_policy.sbpl3.

How It Works

The function spawn_command_under_seatbelt dynamically generates a Sandbox Profile Language (SBPL) script based on the active policy4. SBPL operates on a default-deny model — the generated profile explicitly allows PTYs, basic system calls, and safe sysctls, then injects rules for writable roots3.

A critical detail: .git and .codex directories within writable roots are carved out as read-only subpaths, preventing the agent from corrupting git history or its own configuration4. The environment variable CODEX_SANDBOX=seatbelt is set during execution to allow child processes to detect sandboxed operation4.

Network Control

Network access is a binary choice in the Seatbelt implementation. When disabled, the profile simply omits network permissions, relying on Seatbelt’s default-deny behaviour1. When a NetworkProxy is configured, the profile permits loopback traffic to specific proxy ports whilst blocking all other external connections4.

Recent Changes

In v0.117.0, the macOS sandbox builders were consolidated into a unified module (#15593), and in v0.118.0, extension profiles were removed as part of a permissions cleanup (#15918)5.

Debugging

codex debug seatbelt -- ls /tmp

This runs an arbitrary command through the Seatbelt sandbox, implemented in codex-rs/cli/src/debug_sandbox.rs4. Useful for verifying that a specific tool or script will pass enforcement before running it in a real session.

Linux: Landlock LSM + Seccomp-BPF

The Linux implementation combines two kernel security mechanisms through the codex-linux-sandbox helper binary1. This separate process parses a serialised policy, applies restrictions to the current thread, then calls execvp to spawn the target command3.

Filesystem Restrictions with Landlock

Landlock (available from kernel 5.13) provides capability-based filesystem access control without requiring root privileges6. The implementation in codex-rs/linux-sandbox/src/landlock.rs grants read access universally but restricts write operations to explicitly whitelisted directories plus /dev/null3.

Before applying restrictions, the process calls prctl(PR_SET_NO_NEW_PRIVS) to ensure that neither the sandboxed process nor any of its children can gain additional privileges4. A use_legacy_landlock flag is maintained for compatibility with older kernels that support earlier Landlock ABI versions4.

Syscall Filtering with Seccomp-BPF

Where Landlock handles filesystem isolation, seccomp-BPF handles network isolation. The filter blocks outbound network syscalls including connect, accept, bind, listen, sendto, and sendmsg3. Crucially, AF_UNIX sockets are exempted to preserve local inter-process communication — without this, basic shell operations would break1.

Bubblewrap Integration

On distributions where Landlock is unavailable or insufficient, Codex falls back to Bubblewrap (bwrap) for filesystem namespacing7. The system looks for bwrap at /usr/bin/bwrap; a missing installation triggers startup warnings. On AppArmor-restricted distributions (e.g., Ubuntu 24.04+), you may need:

sudo sysctl -w kernel.apparmor_restrict_unprivileged_userns=0

In v0.118.0, bubblewrap discovery was improved to work reliably on standard multi-entry PATH configurations (#15791, #15973), and compatibility with older bubblewrap versions on legacy distributions was enhanced (#15693)5.

The /dev Filesystem Fix (v0.105.0)

Prior to v0.105.0, sandboxed commands on Linux lacked access to device nodes, causing failures in tools that expected /dev/tty, /dev/urandom, or other standard devices8. The fix provisions a minimal /dev filesystem inside the sandbox, dramatically improving compatibility with common development tools.

The Zsh-Fork Bypass Fix (v0.106.0)

A significant security fix in v0.106.0 addressed a code path where zsh’s fork-based execution could reconstruct command invocation without preserving sandbox wrappers8. This meant that in workspace-write mode, certain zsh fork paths could bypass expected filesystem restrictions — a gap that was closed by ensuring sandbox wrappers are preserved across all shell execution paths (#12800)9.

Debugging

codex debug landlock -- cat /etc/passwd

Sandbox Refactoring (v0.117.0)

The v0.117.0 release extracted Landlock helpers into a dedicated sandboxing module (#15592), centralised policy transformations (#15599), and unified the sandbox manager (#15603)5. Cross-platform PATH construction was also fixed to use OsString instead of String (#15360)5.

Windows: Restricted Tokens, ACLs and Firewall Rules

The Windows implementation, managed by the codex-rs/windows-sandbox-rs crate, is architecturally the most complex of the three platforms4.

User Provisioning

Codex creates two dedicated local sandbox users4:

  • CodexSandboxOffline — for tools without network access
  • CodexSandboxOnline — for network-enabled tools

The run_setup_refresh orchestrator in setup_orchestrator.rs manages user creation, ACL assignment, and firewall configuration4.

Elevated vs Unelevated Sandbox

Elevated sandbox (preferred): Uses dedicated lower-privilege sandbox users, filesystem permission boundaries via ACLs, Windows Firewall rules for network control, and local policy changes. Requires administrator privileges10.

Unelevated sandbox (fallback): Runs commands with a restricted Windows token derived from the current user, applies ACL-based filesystem boundaries, and uses environment-level offline controls (CODEX_SANDBOX_NETWORK_DISABLED=1) instead of firewall rules10.

Both modes employ a private desktop for UI isolation10.

Execution Flow

Commands are launched via create_process_as_user with a restricted token. The token is created by taking the sandbox user’s token and stripping sensitive privileges or adding restricting SIDs4. The code path through token.rs, identity.rs, and process.rs handles token creation, user identity management, and process spawning respectively.

flowchart TD
    A[Command Request] --> B{Administrator?}
    B -->|Yes| C[Elevated Sandbox]
    B -->|No| D[Unelevated Sandbox]
    C --> E[Provision Sandbox Users]
    E --> F[Apply ACLs to Workspace]
    F --> G[Configure Firewall Rules]
    G --> H[Create Restricted Token]
    D --> I[Derive Restricted Token from Current User]
    I --> J[Apply ACL Boundaries]
    J --> K[Set Environment Controls]
    H --> L[Launch on Private Desktop]
    K --> L
    L --> M[Child Process]

Network Isolation

Network blocking on Windows has historically been environment-based rather than kernel-level3. However, v0.118.0 introduced OS-level egress rules for proxy-only networking (#12220), moving towards parity with the kernel-level enforcement on macOS and Linux5.

Platform Requirements

Windows 11 is recommended; Windows 10 requires full updates with ConPTY support10. Common setup failures stem from UAC denial, blocked user/group creation, or firewall rule restrictions — typically requiring IT team intervention for the necessary logon rights10.

Sandbox Denial Detection and Escalation

When a sandboxed command fails, Codex employs heuristic detection through is_likely_sandbox_denied, which analyses both stderr output and exit codes4. The escalation workflow proceeds through three stages:

  1. ToolRuntime detects failure via exit status or output patterns
  2. escalate_on_failure() determines whether to request wider permissions
  3. The approval system (Guardian subagent or user prompt) authorises a SandboxOverride
  4. Policy widens: ReadOnly → WorkspaceWrite → DangerFullAccess

This is a heuristic system — sandbox denial detection relies on pattern matching rather than structured error codes3. False negatives are possible, particularly with tools that silently fail when writes are blocked.

Platform Comparison Matrix

Capability macOS (Seatbelt) Linux (Landlock + Seccomp) Windows (Tokens + ACLs)
Filesystem enforcement Kernel (SBPL) Kernel (Landlock LSM) User-space (ACLs)
Network enforcement Kernel (SBPL) Kernel (Seccomp-BPF) Firewall / Environment
Requires root/admin No No Elevated mode: Yes
Read restriction Full disk read Full disk read Full disk read
Write granularity Per-path with subpath carveouts Per-path Per-path via ACLs
Debug command codex debug seatbelt codex debug landlock codex debug windows-sandbox
Setup required None bubblewrap on some distros User provisioning + policies

Key Limitations

Across all platforms, read access cannot be restricted — sandboxed processes always have full disk read3. This is a deliberate design choice: most development tools require broad read access, and restricting it would break too many workflows. The security model focuses on preventing unwanted writes and network access rather than information exfiltration.

External-sandbox mode disables all local enforcement entirely3, which is appropriate only when a container runtime provides equivalent guarantees.
