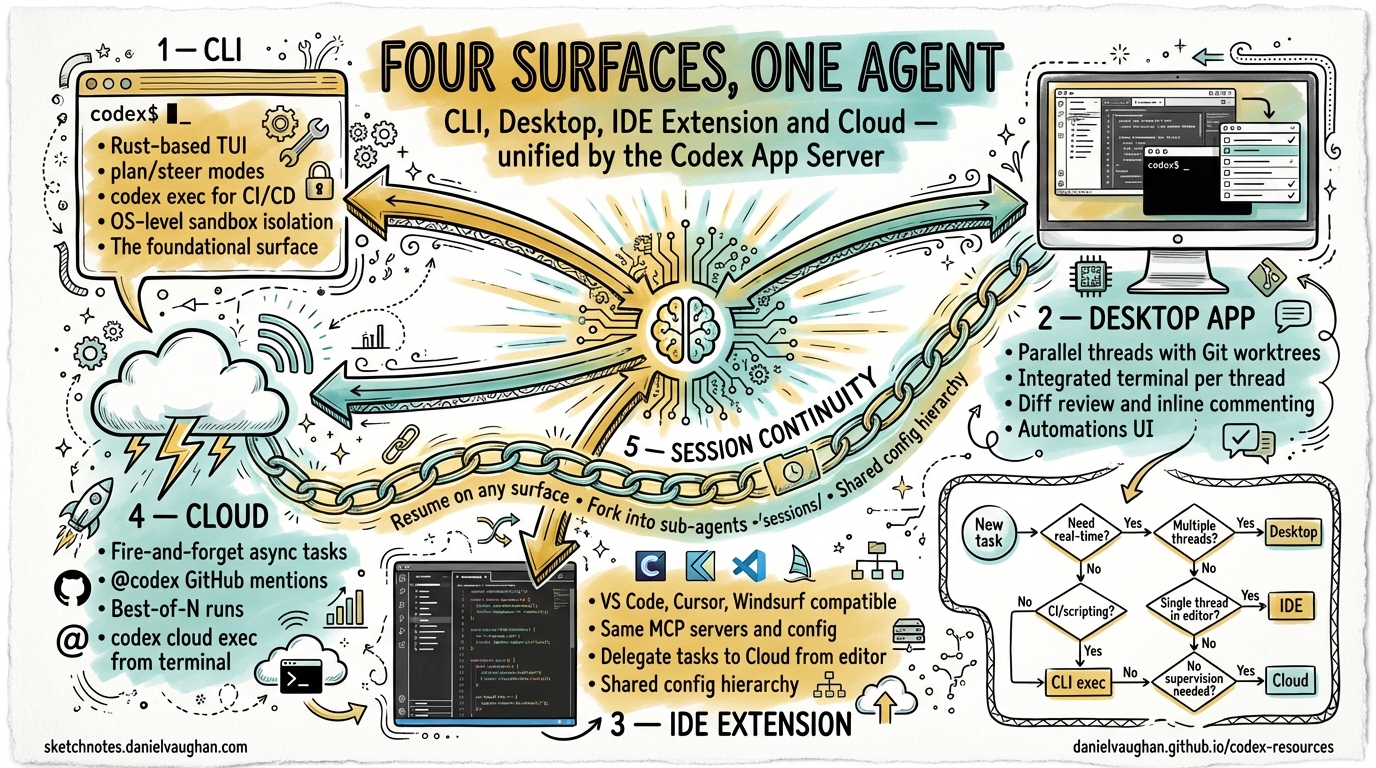

The Four-Surface Architecture: CLI, Desktop, IDE Extension and Cloud as One System

four-surfacesarchitecturemental-modelclidesktopidecloudunifiedcross-surfaceapp-server

The Four-Surface Architecture: CLI, Desktop, IDE Extension and Cloud as One System

OpenAI ships Codex as a single agent with four points of entry. The CLI, Desktop app, IDE extension and Cloud surface all share the same configuration, memory, AGENTS.md instructions and session state 1. Understanding how these surfaces relate — and when to reach for each one — is the key to getting the most from Codex in a professional workflow.

The Unified Intelligence Layer

All four surfaces communicate through the Codex App Server, a bidirectional JSON-RPC 2.0 protocol streamed as JSONL over stdio 2. OpenAI published the specification in February 2026 and describes the design as “single agent, multiple ingress” 3.

The protocol defines three primitives:

Primitive Purpose
Thread Durable session container — survives restarts, resumable across surfaces
Turn A single unit of agent work within a thread
Item An atomic event with a lifecycle: started → delta → completed

Every surface — terminal, desktop window, VS Code panel, or cloud container — is simply a different frontend rendering the same stream of Items within Threads.

graph TD
    A[Codex App Server<br/>JSON-RPC 2.0 / JSONL] --> B[CLI / Terminal TUI]
    A --> C[Desktop App]
    A --> D[IDE Extension]
    A --> E[Cloud / Web]
    F[Shared State] --> A
    F --- G[~/.codex/config.toml]
    F --- H[~/.codex/memory/]
    F --- I[AGENTS.md]
    F --- J[~/.codex/sessions/]

Surface 1: The CLI

The open-source Rust-based terminal agent remains the foundational surface 4. Install via npm i -g @openai/codex or brew install --cask codex and you get a full TUI with plan mode, steer mode and configurable approval levels (suggest, auto-edit, full-auto).

The CLI runs locally with OS-level sandbox isolation: Bubblewrap namespace isolation on Linux, Apple Seatbelt on macOS, and restricted tokens with a private desktop on Windows 5. Windows support moved from experimental to native with PowerShell and sandbox support as of March 4, 2026 6.

Best for: quick single-task operations, scripting pipelines, CI/CD integration via codex exec, and developers who live in the terminal.

# Start an interactive session
codex

# Non-interactive execution for CI
codex exec --full-auto --json "Review this PR for security issues"

# Resume a session started on another surface
codex exec resume --last

Surface 2: The Desktop App

Launched in February 2026, the Desktop app is the command centre for parallel agent work 7. Start it with codex app or install from the Microsoft Store. It is currently available on macOS (Apple Silicon) and Windows, with Linux support forthcoming 7.

The Desktop app adds capabilities that a single terminal cannot easily provide:

  • Parallel threads — run multiple agent conversations simultaneously, each with its own Git worktree
  • Integrated terminal per thread — inspect exactly what the agent is doing without switching windows
  • Diff review and inline commenting — review proposed changes before accepting
  • Automations — scheduled background tasks with skills, configured through the UI

Best for: large refactoring across multiple modules, managing several agent tasks at once, and teams wanting visual diff review before merging agent output.

Surface 3: The IDE Extension

The Codex IDE extension is available for VS Code, Cursor, Windsurf and other VS Code-compatible editors via the Visual Studio Marketplace 8. Third-party integrations for JetBrains and Xcode are also referenced in the documentation 1.

The extension shares the same MCP (Model Context Protocol) servers and configuration as the CLI — ~/.codex/config.toml and project-level AGENTS.md apply identically 8. From the editor panel you can:

  • Start an interactive Codex session scoped to the current workspace
  • Delegate tasks directly to Codex Cloud without leaving the editor
  • Review and apply file changes inline with the editor’s native diff view

Best for: developers who prefer to stay in their editor, contextual code generation scoped to the current file or workspace, and quick delegation of tasks to cloud.

Surface 4: Cloud (Codex Web)

Accessible at chatgpt.com/codex, the cloud surface runs tasks asynchronously in isolated containers with your codebase preloaded 9. This is fire-and-forget: submit a task description, walk away, and review the results when the agent finishes.

Cloud tasks support:

  • Parallel execution — submit multiple tasks and let them run concurrently
  • GitHub integration — use @codex mentions on GitHub issues and PRs to trigger cloud tasks 9
  • Best-of-N runs — codex cloud exec --attempts 3 runs the task multiple times and selects the best result 10
  • CLI submission — codex cloud exec "migrate to the new API" from the terminal

Best for: long-running migrations, overnight refactors, tasks that do not need real-time supervision, and triggering work from GitHub without opening a terminal.

Cross-Surface Session Continuity

Sessions persist under ~/.codex/sessions/ and can be resumed on any surface 1. A typical workflow might look like this:

sequenceDiagram
    participant Dev as Developer
    participant CLI as CLI
    participant Desktop as Desktop App
    participant Cloud as Cloud

    Dev->>CLI: Start refactoring session
    CLI-->>Dev: Plan generated, 3 modules identified
    Dev->>Desktop: Resume session, fork into 3 threads
    Desktop-->>Dev: Parallel refactoring across worktrees
    Dev->>Cloud: Delegate test generation to cloud
    Cloud-->>Dev: Tests generated async, PR opened
    Dev->>CLI: codex exec resume --last (review results)

The key operations for cross-surface work:

Operation What it does
Resume Continue a session on any surface — interactive picker or specific ID
Fork Branch a conversation into sub-agents (v0.107.0+) 11
Delegate Push a task from one surface to another (e.g. IDE → Cloud)

Shared Configuration Across Surfaces

All four surfaces read from the same configuration hierarchy:

Session overrides → CLI flags → Project config → User config → System config → Defaults

The critical shared files:

File Purpose
~/.codex/config.toml User-level configuration (model, approval mode, plugins)
.codex/config.toml Project-level configuration
AGENTS.md Project instructions read by all surfaces
~/.codex/memory/ Persistent memory shared across sessions and surfaces

This means setting model = "o4-mini" in your user config applies whether you are working from the terminal, the desktop app, or the IDE extension 1. Plugins installed via one surface are available on all others as of v0.117.0 12.

Choosing the Right Surface

The decision is situational, not ideological. Here is a practical decision framework:

flowchart TD
    A[New task] --> B{Need real-time<br/>interaction?}
    B -- Yes --> C{Multiple parallel<br/>threads?}
    B -- No --> D[Cloud]
    C -- Yes --> E[Desktop App]
    C -- No --> F{In editor?}
    F -- Yes --> G[IDE Extension]
    F -- No --> H{CI/CD or<br/>scripting?}
    H -- Yes --> I[CLI with codex exec]
    H -- No --> J[CLI interactive]

In practice, most developers settle into a primary surface and use the others for specific scenarios. The architecture ensures this is a matter of preference rather than capability — every surface has access to the same agent intelligence, the same tools, and the same project context.

What This Means for Teams

For engineering teams, the four-surface model has practical implications:

  1. Onboarding flexibility — new team members can use whichever surface matches their existing workflow
  2. Consistent AGENTS.md — project instructions are enforced regardless of which surface a developer uses
  3. Audit trail — sessions are durable and reviewable, whether initiated from the CLI or the desktop app
  4. CI/CD integration — codex exec in pipelines uses the same agent and configuration as interactive use

The repository currently has 67,782 GitHub stars and is released under the Apache-2.0 licence 4, with development velocity of 10–15 daily commits as of March 2026 5.

Citations

  1. OpenAI Codex Developer Documentation — CLI ↩ ↩2 ↩3 ↩4

  2. InfoQ: OpenAI Publishes Codex App Server Architecture — February 2026 ↩

  3. OpenAI Blog: Unlocking the Codex Harness ↩

  4. GitHub: openai/codex — Apache-2.0 licensed open-source repository ↩ ↩2

  5. Zylos Research: Codex CLI Architecture and Multi-Runtime Patterns — March 26, 2026 ↩ ↩2

  6. OpenAI Codex Developer Documentation — Changelog — v0.118.0, March 31, 2026 ↩

  7. OpenAI Codex Developer Documentation — Desktop App ↩ ↩2

  8. OpenAI Codex Developer Documentation — IDE Extension ↩ ↩2

  9. OpenAI Codex Developer Documentation — Cloud ↩ ↩2

  10. OpenAI Codex Product Page ↩

  11. OpenAI Community: Introducing the Codex IDE Extension ↩

  12. Wikipedia: OpenAI Codex (AI agent) ↩
