The codex exec-server Subcommand: Foundation for Headless and Daemon-Mode Codex

exec-serverheadlessdaemonci-cdremote-executionexperimentalcodex-rsarchitecture

The codex exec-server Subcommand: Foundation for Headless and Daemon-Mode Codex

Introduction

Since v0.117.0 (March 2026), the Codex CLI codebase has shipped codex-exec-server — a standalone execution server process that cleanly separates the runtime responsible for sandboxed command execution and filesystem operations from the interactive TUI 1. While codex exec already provided non-interactive headless runs 2, the exec-server goes further: it introduces a JSON-RPC service layer that lets any frontend — local TUI, VS Code extension, remote laptop, or CI runner — drive the same execution backend over a well-defined protocol.

This article examines the exec-server’s architecture, its relationship to the app-server, the local/remote process split, and what it means for practitioners building CI/CD pipelines and remote development workflows.

Why a Separate Execution Server?

The original Codex CLI bundled everything into a single process: model interaction, tool execution, sandboxing, and the terminal UI. This design works well for interactive use but creates friction in three scenarios:

  1. CI/CD pipelines — headless environments need execution without a TUI, and codex exec addressed this 2, but the agent loop and execution runtime remained coupled.
  2. Remote development — developers want the TUI on a laptop but execution on a powerful remote machine, continuing work even when the laptop sleeps 3.
  3. Multi-frontend architectures — the VS Code extension, web UIs, and custom integrations all need the same execution capabilities without reimplementing sandboxing logic.

The exec-server solves all three by extracting execution into an independently addressable service.

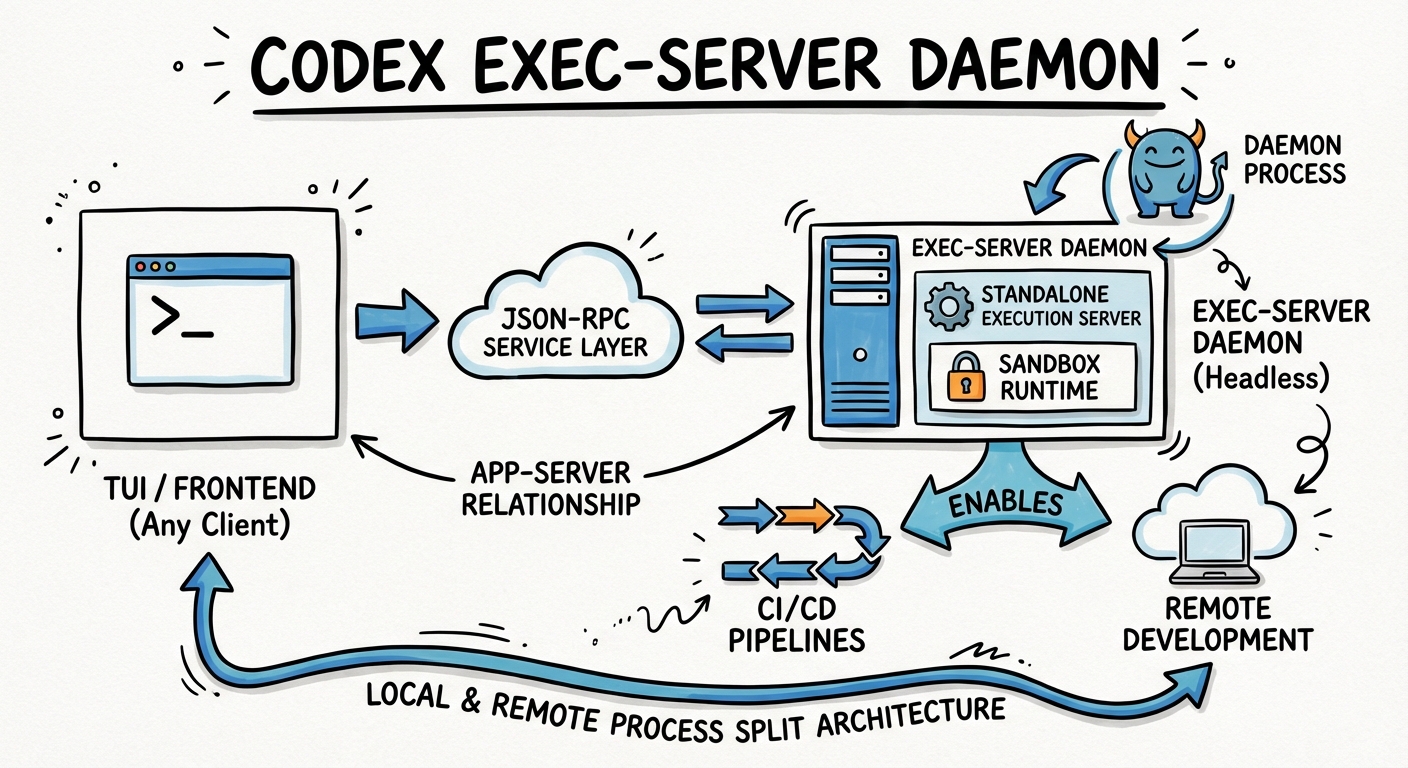

Architecture Overview

The exec-server sits alongside the app-server in the codex-rs Rust codebase. The app-server manages conversations, threads, turns, and model interaction 4. The exec-server handles the lower-level concerns: running commands in sandboxes, reading and writing files, and watching filesystem changes 5.

graph TB
    subgraph Frontends
        TUI[Terminal TUI]
        VSC[VS Code Extension]
        CI[CI/CD Runner]
        Custom[Custom Client]
    end

    subgraph "App Server (JSON-RPC)"
        Threads[Thread Management]
        Turns[Turn Processing]
        Model[Model Interaction]
        Guardian[Guardian AI]
    end

    subgraph "Exec Server (JSON-RPC)"
        ExecProc[Process Execution]
        FS[Filesystem Operations]
        Sandbox[Sandbox Enforcement]
        Watch[File Watching]
    end

    TUI --> Threads
    VSC --> Threads
    CI --> Threads
    Custom --> Threads

    Turns --> ExecProc
    Turns --> FS
    ExecProc --> Sandbox

The key insight is the Environment abstraction: the app-server’s core logic interacts with an Environment struct exposing services via traits 6. Each service — process execution, filesystem access — can be backed by either a local implementation or a remote proxy, and the core logic doesn’t know the difference.

The JSON-RPC Protocol

The exec-server speaks newline-delimited JSON-RPC 2.0 over stdio, matching the app-server’s wire conventions (the "jsonrpc":"2.0" field is omitted for brevity) 1. Stderr is reserved for logs and process errors.

The protocol follows a strict initialisation handshake:

{"method": "initialize", "id": 1, "params": {}}

After the handshake, clients can issue RPCs for:

  • Process execution — spawn commands under the configured sandbox policy, stream stdout/stderr, write stdin, resize PTY windows, and terminate sessions 5
  • Filesystem operations — read files, write files, manage directories, and subscribe to filesystem change notifications 7

Connection resilience is built in: malformed JSON-RPC input triggers error responses rather than dropping the connection 1.

Supported Transports

The app-server supports multiple transports, and the exec-server follows the same pattern 4:

Transport Description Use Case
stdio (default) Newline-delimited JSON over stdin/stdout Local IPC, subprocess spawning
WebSocket (experimental) One JSON-RPC message per text frame Remote connections, browser UIs
off No local transport Embedded scenarios

WebSocket listeners additionally expose /readyz and /healthz health probes and support authentication via capability tokens or HMAC-signed JWT bearer tokens 4.

The Local/Remote Process Split

The most architecturally significant change is the clean separation between LocalProcess and RemoteProcess implementations 8:

graph LR
    subgraph "Environment"
        EP[ExecProcess trait]
    end

    subgraph "Local Mode"
        LP[LocalProcess]
        SB[Sandbox]
    end

    subgraph "Remote Mode"
        RP[RemoteProcess]
        ESC[ExecServerClient]
        ES[Remote Exec Server]
    end

    EP --> LP
    EP --> RP
    LP --> SB
    RP --> ESC
    ESC -->|JSON-RPC| ES
  • LocalProcess is the real implementation — it spawns commands, enforces sandbox policies (macOS Seatbelt, Linux Landlock+seccomp, Windows Job Objects), and manages PTY sessions 8.
  • RemoteProcess is a thin network proxy that delegates every call to an ExecServerClient, which forwards operations to a remote exec-server instance over JSON-RPC 8.
  • ProcessHandler sits on the server side as a thin RPC adapter that routes incoming requests to LocalProcess 8.

The filesystem layer follows the same split: LocalFilesystem handles direct I/O whilst RemoteFilesystem proxies operations to the exec-server 7.

This architecture means you can run the exec-server on a beefy cloud VM, point your laptop’s TUI at it via WebSocket, and get full sandboxed execution remotely — with the TUI remaining responsive even over intermittent connections.

Experimental URL-Based Connection

PR #15196 added experimental exec-server URL handling 9, allowing clients to specify a remote exec-server endpoint in configuration:

# config.toml (experimental)
[exec_server]
url = "ws://remote-host:8082"

When a URL is configured, the Environment construction automatically selects remote-backed implementations for process and filesystem services rather than local ones 6. This is the configuration-level toggle that makes the local/remote split practical.

⚠️ This configuration surface is experimental as of April 2026 and may change. The exact config.toml key names have not been finalised in public documentation.

Implications for CI/CD

The exec-server architecture opens several CI/CD patterns beyond what codex exec alone provides:

Pattern 1: Persistent Execution Server in CI

Rather than spawning a fresh Codex process per pipeline step, a CI workflow can start an exec-server once and issue multiple RPC calls against it:

# Start exec-server as a background service
codex exec-server --transport stdio &
EXEC_PID=$!

# Multiple pipeline steps reuse the same server
codex exec --exec-server-pid $EXEC_PID "run linting"
codex exec --exec-server-pid $EXEC_PID "fix type errors"
codex exec --exec-server-pid $EXEC_PID "generate release notes"

kill $EXEC_PID

⚠️ The exact CLI flags for connecting codex exec to a running exec-server are not yet documented publicly. The above illustrates the architectural intent.

Pattern 2: Remote Execution from Local TUI

sequenceDiagram
    participant Dev as Developer Laptop
    participant TUI as Codex TUI
    participant App as App Server
    participant Exec as Remote Exec Server
    participant VM as Cloud VM

    Dev->>TUI: codex (interactive)
    TUI->>App: thread/start
    App->>Exec: process/exec (JSON-RPC over WS)
    Exec->>VM: Sandboxed command execution
    VM-->>Exec: stdout/stderr stream
    Exec-->>App: Event notifications
    App-->>TUI: Live updates
    Note over Dev,VM: Laptop can sleep — exec continues on VM

This pattern keeps compute-intensive operations (builds, test suites, large refactors) on remote infrastructure whilst maintaining the interactive developer experience locally 3.

Pattern 3: Shared Execution Environment

Multiple developers or agents can connect to the same exec-server, enabling collaborative workflows where a human reviews changes in the TUI whilst an automated agent runs tests via codex exec — both sharing the same sandboxed filesystem state.

Relationship to the App Server

It’s important to understand how exec-server and app-server complement each other 4:

Concern App Server Exec Server
Thread/conversation management ✓ —
Model interaction ✓ —
Guardian AI evaluation ✓ —
Command execution Via exec-server ✓
Filesystem operations Via exec-server ✓
Sandbox enforcement — ✓
Health probes ✓ ✓

The app-server remains the primary entry point for all frontends. It delegates execution concerns to the exec-server (either in-process via LocalProcess or out-of-process via RemoteProcess). The v0.117.0 release made the app-server-backed TUI the default, meaning every interactive Codex session now flows through this layered architecture 10.

Security Considerations

The exec-server inherits the same three-OS sandbox architecture 11:

  • macOS: sandbox-exec with Seatbelt profiles
  • Linux: Landlock LSM + seccomp-bpf (with optional Bubblewrap pipeline)
  • Windows: Native Windows sandbox in PowerShell, Linux sandbox under WSL2

When running remotely, the exec-server enforces sandbox policies on the server side — the client cannot bypass restrictions by manipulating RPC calls. Authentication via capability tokens or JWT prevents unauthorised access to remote exec-server instances 4.

However, practitioners should note that remote exec-servers see all code and command output in transit. For sensitive codebases, ensure WebSocket connections use TLS and consider network-level isolation.

Current Status and What’s Next

As of April 2026, the exec-server is functional but still maturing:

  • Shipped (v0.117.0): Stub server, protocol docs, process and filesystem RPCs, local/remote split, environment abstraction 1 5 7 8
  • Shipped (v0.118.0): App-server device-code authentication for headless environments, prompt-plus-stdin workflow for codex exec 10
  • Experimental: URL-based remote exec-server connection 9
  • Not yet public: CLI flags for explicitly starting/connecting to exec-server instances, production deployment guides

The trajectory is clear: Codex CLI is evolving from a single-process terminal tool into a client-server architecture where the execution engine can run anywhere. For teams already using codex exec in CI/CD, the exec-server will eventually provide persistent execution contexts, remote sandboxing, and multi-client collaboration — turning Codex from a developer’s terminal companion into deployable infrastructure.
