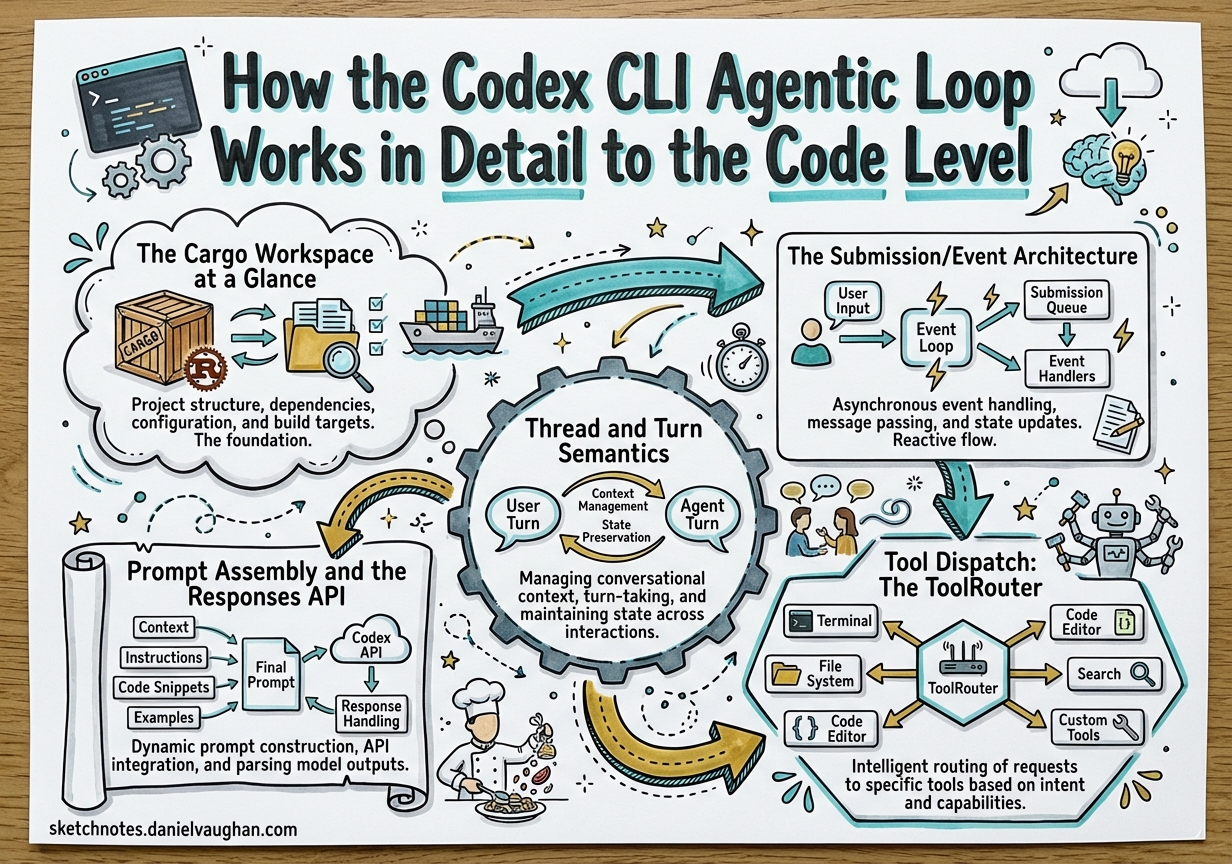

How the Codex CLI Agentic Loop Works in Detail to the Code Level

Every time you type a prompt into Codex CLI, a carefully orchestrated machinery of Rust async tasks, streaming API calls, tool dispatchers, and OS-level sandboxes springs into action. This article traces the complete lifecycle of a single turn through the Codex CLI codebase — from keystroke to committed code — referencing the actual crate structure, key source files, and design decisions that make it work.

The Cargo Workspace at a Glance

Codex CLI ships as a single binary compiled from a Cargo workspace of approximately 84 member crates1. The crates that matter most for understanding the agentic loop are:

Crate Responsibility
codex-core Session management, model API communication, tool orchestration
codex-protocol Shared wire types (Op, EventMsg, items)
codex-tui Interactive terminal UI (Ratatui-based)
codex-exec Headless non-interactive execution (codex exec)
codex-cli Multitool dispatcher routing subcommands
codex-config Layered configuration with validation

The binary entry point lives in codex-cli, which delegates to either codex-tui (interactive) or codex-exec (headless) after parsing arguments1.

The Submission/Event Architecture

Codex decouples its user interface from the agent engine using an asynchronous submission/event queue pattern1. Two primitives define the contract:

  • Codex::submit(Op) — clients push operations (user turns, approvals, interrupts) wrapped in Submission envelopes carrying unique IDs and optional W3C trace context for distributed tracing.
  • Codex::next_event() — the engine emits EventMsg notifications (message deltas, tool status updates, approval requests) back to the UI.

This separation means the TUI, the exec harness, and the app-server for IDE integration all consume the same event stream. The submission_loop runs as a dedicated Tokio task, ensuring linearised state changes whilst supporting concurrent event processing across multiple client connections1.

sequenceDiagram
    participant User as User / IDE
    participant Sub as Codex::submit()
    participant Loop as submission_loop (Tokio task)
    participant Ctx as ContextManager
    participant API as Responses API (SSE)
    participant Tools as ToolRouter
    participant Evt as Codex::next_event()

    User->>Sub: Op::UserTurn(prompt)
    Sub->>Loop: Submission { id, op, trace_ctx }
    Loop->>Ctx: Record user input, build prompt
    Ctx->>API: POST /v1/responses (streaming)
    API-->>Loop: SSE: response.output_text.delta
    Loop-->>Evt: EventMsg::TextDelta
    API-->>Loop: SSE: response.output_item.added (tool_call)
    Loop->>Tools: Dispatch tool call
    Tools-->>Loop: Tool result
    Loop->>Ctx: Append result to history
    Ctx->>API: POST /v1/responses (continuation)
    API-->>Loop: SSE: response.completed
    Loop-->>Evt: EventMsg::TurnComplete
    Evt-->>User: Render final output

Thread and Turn Semantics

Codex models conversations as a hierarchy of Threads and Turns1:

  • A Thread is a persistent conversation backed by SQLite (StateDB). Threads survive process restarts and can be resumed, forked, archived, or rolled back.
  • A Turn is one round-trip cycle: user input triggers model inference, which may produce tool calls whose results feed back into the model until a final assistant message appears.
  • Items are granular events within a turn — agent messages, shell output, file edits, reasoning traces.

The ThreadManager orchestrates multiple CodexThread instances (a primary agent plus any sub-agents), each maintaining its own ContextManager for message history and token accounting1.

Prompt Assembly and the Responses API

Each turn begins with the ContextManager assembling a prompt for the OpenAI Responses API. The prompt structure follows a strict ordering to maximise cache hits2:

  1. System message — general rules, coding standards
  2. Tools — conforming to the Responses API tool schema
  3. Developer instructions — from config.toml, AGENTS.md, AGENTS.override.md, and skill-based instructions (subject to a 32 KiB default limit)2
  4. Input sequence — the full conversation history (text, images, file inputs, tool results)

Codex deliberately avoids the previous_response_id parameter despite the apparent inefficiency of resending the full history each time. This design choice ensures every request is stateless, enabling Zero Data Retention (ZDR) compliance for enterprise customers who reject server-side data storage2.

The API is called via one of three endpoints depending on authentication2:

Auth Method Endpoint
ChatGPT login chatgpt.com/backend-api/codex/responses
API key api.openai.com/v1/responses
Local/OSS models localhost:11434/v1/responses (with --oss)

Responses stream back as Server-Sent Events (SSE): response.output_text.delta events drive incremental UI rendering, whilst response.output_item.added events signal tool call requests requiring dispatch2.

Tool Dispatch: The ToolRouter

When the model emits a tool call, the ToolRouter (in codex-core) classifies and dispatches it to one of three execution backends1:

Built-in Shell Tools

Shell commands route through the UnifiedExecProcessManager, which manages PTY allocation and long-running process lifecycle. The system prompt teaches a shell-first toolkit — cat for reading, grep/find for searching, test runners and linters for verification — reserving file mutation for the dedicated apply_patch envelope3.

The apply_patch System

File modifications use a structured patch format rather than raw shell writes. The binary supports a special invocation mode: when arg1 is --codex-run-as-apply-patch, the process acts as a virtual patch CLI4. This ensures all file edits pass through a validated, diffable pathway rather than unconstrained shell writes.

MCP Server Integration

External tools (database queries, API calls, custom integrations) are accessed via the Model Context Protocol. The McpConnectionManager maintains lifecycle management for MCP servers over stdio or HTTP bridges, routing tool calls through the same approval and sandbox policy as built-in tools1.

flowchart TD
    TC[Model emits tool_call] --> TR{ToolRouter}
    TR -->|Shell command| APR[Approval Gate]
    TR -->|File edit| APR
    TR -->|MCP tool| APR
    APR -->|Approved| SB{Sandbox Policy}
    APR -->|Denied| DENY[Return denial to model]
    SB -->|DangerFullAccess| EXEC[Execute unrestricted]
    SB -->|WorkspaceWrite| WS[Execute with write ACL]
    SB -->|ReadOnly| RO[Execute read-only]
    EXEC --> RES[Append result to history]
    WS --> RES
    RO --> RES
    RES --> CTX[ContextManager continuation]
    CTX --> API[Next Responses API call]

The Approval Gate State Machine

Before any tool executes, it passes through an approval gate governed by the AskForApproval enum15:

Mode Behaviour
UnlessTrusted Auto-approves safe read-only operations; prompts for writes and network access
OnRequest The model itself decides when to request user consent
Never No prompts — used in non-interactive codex exec modes

These map to the user-facing approval modes5:

  • Auto (default) — reads and workspace-scoped edits proceed; out-of-scope writes and network access require confirmation.
  • Read-only — consultative mode; all mutations require explicit approval.
  • Full Access — unrestricted; use sparingly with trusted repositories.

Approval state persists across session resumption via SQLite StateDB, so resuming a thread retains the user’s previous policy decisions1.

Sandbox Lifecycle: Landlock, Seatbelt, and arg0 Dispatch

The sandbox is Codex CLI’s most distinctive architectural feature — enforcement happens at the kernel level, not the application layer6.

Platform-Specific Backends

Platform Mechanism Implementation
Linux Landlock LSM (+ optional Bubblewrap pipeline) codex-linux-sandbox binary alias
macOS Seatbelt sandbox profiles Confined mode via sandbox-exec
Windows Restricted token elevation Via WSL2

The arg0 Dispatch Pattern

The entry point wraps the main function in arg0_dispatch_or_else()4. This function inspects the binary name at invocation time:

  • If invoked as codex-linux-sandbox, it immediately executes a sandboxed command using Landlock restrictions without parsing regular CLI arguments.
  • Otherwise, it loads environment variables, patches PATH, and proceeds to normal CLI logic — but crucially, it passes the sandbox executable path downstream so codex-core can re-invoke itself with restrictions when executing tool calls.

This self-referential dispatch pattern means the sandbox helper is embedded within the same binary rather than requiring a separate sidecar process4.

Sandbox Policies

Three policy levels control what the sandbox permits1:

  • DangerFullAccess — unrestricted filesystem and network access.
  • WorkspaceWrite — write access limited to the current working directory and explicitly specified roots.
  • ReadOnly — filesystem read-only to allowed directory roots.

Every tool call flows through a centralised execution system in the ToolOrchestrator that selects the appropriate sandbox based on the current approval mode and the tool’s risk classification4. You can test sandbox behaviour directly using codex debug seatbelt or codex debug landlock4.

Context Window Management and Compaction

With GPT-5.4’s 1M token context window7, Codex can sustain long sessions — but history still grows, and the entire conversation is included in every request2. Two strategies keep this manageable:

Prompt Caching

Codex structures prompts so that static content (system instructions, tool definitions) occupies the prefix and variable content (conversation history) appends to the end. With cache hits, sampling cost becomes linear rather than quadratic2. Empirical measurements show8:

Scenario Cache Hit Rate Median TTFT Cost per Request
Stable prefixes 85% 953 ms $0.009
Perturbed prefixes 0% 2,727 ms $0.033

That is a 65% latency reduction and 71% cost reduction from prefix consistency alone.

Cache misses are triggered by mid-conversation configuration changes: tool availability modifications, model switching, sandbox reconfiguration, approval mode changes, or working directory updates2.

Automatic Compaction

Token tracking lives in codex-rs/core/src/context_manager/history.rs. The estimate_response_item_model_visible_bytes() function serialises items and applies byte-to-token heuristics, with Session::recompute_token_usage() in codex.rs calling ContextManager::estimate_token_count() to maintain running totals9.

When usage exceeds model_auto_compact_token_limit (approximately 95% of the effective window — around 180K–244K tokens depending on the model), auto-compaction triggers9. The process, implemented in codex-rs/core/src/compact.rs10:

  1. The full conversation history is sent to the /responses/compact endpoint with a dedicated summarisation prompt.
  2. The server generates a structured summary and returns it AES-encrypted8. The encryption keys remain server-side, preventing clients from inspecting or tampering with summaries.
  3. Write tools are blocked before compaction triggers to prevent mid-refactoring conflicts8.
  4. The session rebuilds context as: initial prompt + recent user messages (~20K tokens) + the encrypted summary blob.
  5. On subsequent requests, OpenAI’s servers decrypt the blob and inject it with a handoff prompt before feeding context to the model.

The implementation includes retry logic with exponential backoff for failed compactions, and warns that “long conversations and multiple compactions can cause the model to be less accurate”10. Users can also trigger compaction manually via the /compact slash command.

flowchart LR
    A[Token count exceeds threshold] --> B[Block write tools]
    B --> C[Send history to /responses/compact]
    C --> D[Server generates AES-encrypted summary]
    D --> E[Rebuild context: prefix + recent msgs + blob]
    E --> F[Resume normal operation]
    F --> G[Server decrypts blob on next request]

The App Server: JSON-RPC for IDE Integration

For IDE integration (VS Code, Cursor, JetBrains), the codex-api crate exposes a JSON-RPC 2.0 interface over stdio (JSONL)111. The server comprises four main components:

  1. Stdio reader — parses incoming JSON-RPC calls
  2. CodexMessageProcessor — translates between wire protocol and internal types
  3. Thread manager — creates, resumes, and forks threads
  4. Core threads — the actual CodexThread instances running the agentic loop

The EventMsg notifications from the core are translated into JSON-RPC notifications, enabling IDEs to render streaming output, display approval prompts, and show tool execution status in real time11.

Session Persistence and Rollout Files

Every session is persisted as compressed JSONL (.jsonl.zst) files in ~/.codex/sessions/ organised by date1. The RolloutRecorder filters events based on persistence mode and writes timestamped files enabling:

  • Resumption — replay events to restore conversation state
  • Forking — branch a conversation at any point
  • Audit trail — complete operational history for compliance

Each rollout file contains session metadata and serialised event items sufficient for full reconstruction1.

Error Recovery

When tool execution fails, the error output is appended to the conversation history and fed back to the model as a tool result. The model then reasons about the failure and decides whether to retry with a modified approach, try an alternative strategy, or report the failure to the user. This is not explicit retry logic in the orchestrator — rather, the model’s own reasoning drives recovery, consistent with the ReAct pattern2.

Compaction failures are the exception: compact.rs implements explicit retry with exponential backoff before falling back to continued operation with the uncompacted history10.

Comparative Architecture: Claude Code

For context, Claude Code takes a fundamentally different approach to several of these concerns7:

  • Sandbox: Application-layer hooks with 17 lifecycle event types (e.g., PreToolUse on Bash) rather than kernel-level enforcement.
  • Context: 200K token window (vs. Codex’s 1M) compensated by codebase retrieval and cascading CLAUDE.md hierarchy.
  • Multi-agent: Interactive subagent spawning via Task tool with real-time synthesis, versus Codex’s fire-and-forget cloud delegation supporting up to 6 concurrent threads.

Both approaches are valid — Codex optimises for security-first isolation and large-context reasoning; Claude Code optimises for flexible programmable hooks and retrieval-augmented generation.

Key Takeaways

The Codex CLI agentic loop is not a simple prompt-response cycle. It is a production-grade async runtime with kernel-level sandboxing, encrypted context compaction, stateless API design for ZDR compliance, and a self-referential binary that re-invokes itself to enforce sandbox restrictions. Understanding these internals is essential for anyone building custom harnesses, debugging unexpected behaviour, or extending Codex through MCP servers and skills.
