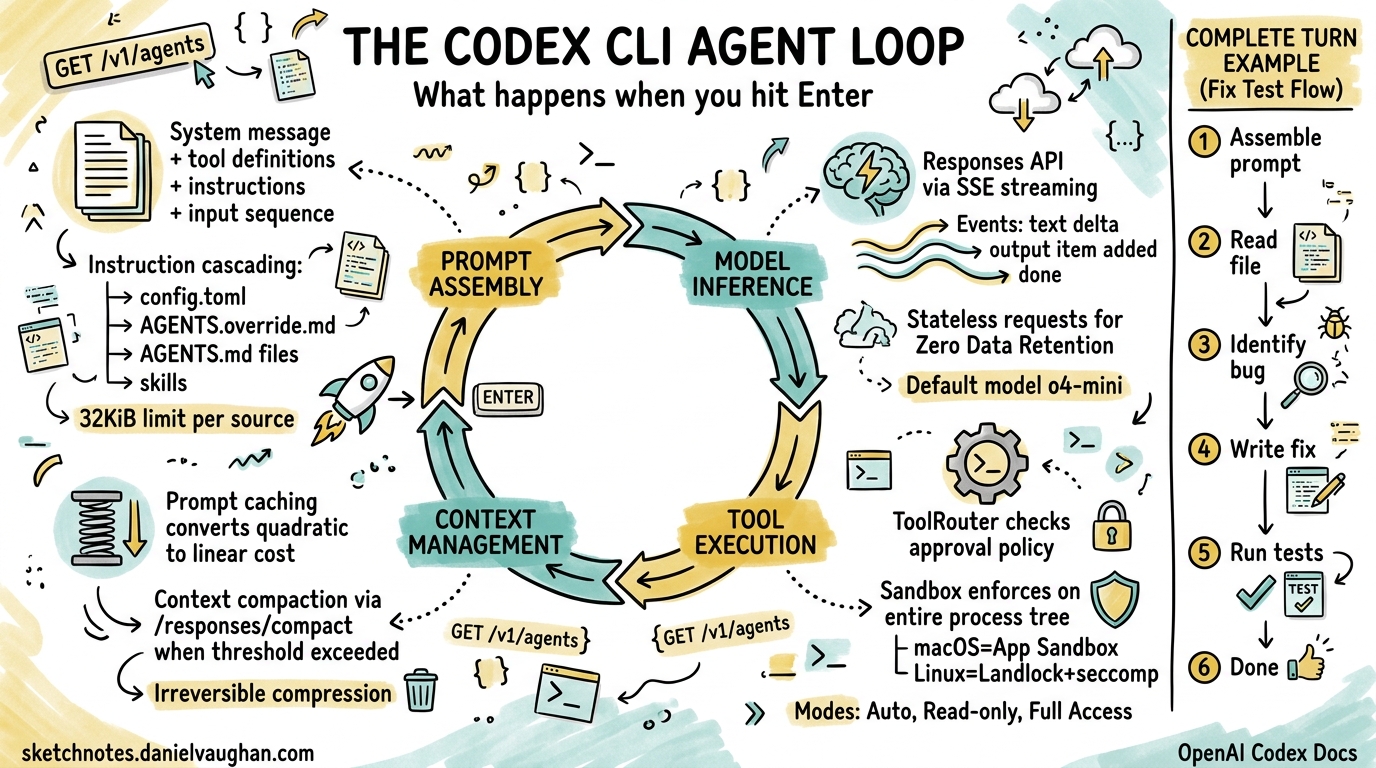

Sketchnote diagram for: The Codex CLI Agent Loop Explained: What Happens When You Hit Enter

The Codex CLI Agent Loop Explained: What Happens When You Hit Enter

Every time you type a prompt into Codex CLI and press Enter, an orchestration engine kicks into gear — assembling context, querying a model, executing tools, and looping until the task is done. OpenAI calls this the agent loop, and understanding it is the difference between treating Codex as a black box and being able to debug, optimise, and extend it effectively.

This article dissects that loop from the inside out, drawing on OpenAI’s own engineering deep-dive1 and the open-source Rust implementation2.

The Big Picture

A single interaction with Codex CLI — from prompt to final response — is called a turn. A turn may contain dozens of internal iterations, each involving a model inference call and zero or more tool executions. The turn ends only when the model emits a done event containing an assistant message such as “I’ve updated the tests for you.”1

sequenceDiagram
    participant User
    participant Harness as Codex Harness
    participant API as Responses API
    participant Tools as Tool Router

    User->>Harness: Prompt
    Harness->>Harness: Assemble initial prompt
    loop Agent Loop (one turn)
        Harness->>API: POST /v1/responses (JSON payload)
        API-->>Harness: SSE stream (events)
        alt Tool call event
            Harness->>Tools: Execute tool in sandbox
            Tools-->>Harness: Tool output
            Harness->>Harness: Append output to prompt
        else Done event
            Harness-->>User: Assistant message + code changes
        end
    end

The harness — Codex’s core runtime — is the glue between you, the model, and the tools the model invokes3. In the Rust rewrite (codex-rs), this lives in the codex-exec crate, but the logical flow is the same regardless of implementation language4.

Phase 1: Prompt Assembly

Before any model call, Codex constructs a structured JSON payload for the Responses API. The payload follows a strict hierarchy with role-based priority weighting1:

  1. System message — server-controlled instructions defining the agent’s core behaviour
  2. Tool definitions — all available tools including built-in shell/file tools, API-registered tools, and MCP servers
  3. Instructions — client-provided guidance assembled from multiple cascading sources
  4. Input sequence — user messages, prior assistant responses, and tool call results

Instruction Cascading

The instructions component deserves special attention. Codex merges guidance from several sources in priority order15:

  1. ~/.codex/config.toml — global user preferences
  2. AGENTS.override.md — project-level overrides (typically git-ignored)
  3. AGENTS.md files — traversed from the project root to the current working directory
  4. Configured skill instructions

Each source is subject to a 32 KiB limit1. This cascading design means a team can set project-wide conventions in a root AGENTS.md while individual developers add personal preferences in config.toml or AGENTS.override.md.

Phase 2: Model Inference via the Responses API

With the prompt assembled, Codex sends an HTTP POST to the Responses API. The exact endpoint varies by authentication method1:

Auth Method Endpoint
ChatGPT login chatgpt.com/backend-api/codex/responses
API key api.openai.com/v1/responses
Local model localhost:11434/v1/responses

The default model is o4-mini, though this is configurable via --model or config.toml2. For Codex Cloud, the dedicated codex-1 model — a fine-tuned variant of o3 optimised for software engineering — is used instead6.

Streaming with Server-Sent Events

The API responds via Server-Sent Events (SSE), with each event containing a JSON payload prefixed by type1. Key event types include:

  • response.output_text.delta — incremental text for real-time UI streaming
  • response.output_item.added — new items (tool calls, reasoning steps) that must be appended to subsequent requests
  • response.output_item.done — completion markers for individual items
  • response.done — the turn-ending signal

A single response can contain multiple done events — for example, a reasoning item followed by a function call — and each must be captured and included in the next iteration’s input1.

Phase 3: Tool Execution

When the model requests a tool call, the harness routes it through the ToolRouter, which enforces the configured approval policy before spawning the process7.

Approval Policies

Codex’s current approval modes (post-Rust rewrite) are78:

Mode Behaviour
Auto (default) Reads, edits, and commands within the working directory proceed automatically; external access requires approval
Read-only Agent can browse files but cannot execute commands or write
Full Access Unrestricted machine and network access

Sandbox Enforcement

Every tool call executes within a sandbox whose profile applies to the entire process tree, not just the direct child process7. This prevents a tool call from spawning background workers that escape the policy boundary. The sandbox implementation is platform-native:

  • macOS — App Sandbox / sandbox-exec
  • Linux — Landlock + seccomp
  • Windows — Win32 job objects and restricted tokens
flowchart TD
    A[Model requests tool call] --> B{ToolRouter}
    B -->|Check approval policy| C{Approved?}
    C -->|No| D[Prompt user for approval]
    C -->|Yes| E[Select sandbox profile]
    D -->|Approved| E
    D -->|Rejected| F[Return rejection to model]
    E --> G[Spawn process in sandbox]
    G --> H[Capture stdout/stderr]
    H --> I[Append output to prompt]
    I --> J[Next iteration]

The tool output — stdout, stderr, exit codes — is appended to the conversation history and fed back to the model for the next iteration of the loop1.

Phase 4: Context Window Management

As the loop iterates, the conversation payload grows. Every iteration resends the full history because Codex deliberately maintains stateless requests — it never uses the previous_response_id parameter1. This design choice enables Zero Data Retention (ZDR) compliance, critical for enterprise customers who cannot have conversation data persisted on OpenAI’s servers1.

The trade-off is that naive looping would be quadratic in cost — each iteration processes all previous tokens plus new ones. Two mechanisms keep this manageable.

Prompt Caching

Exact-prefix prompt caching converts quadratic inference cost to approximately linear on cache hits1. The key insight is that the static portion of the prompt (system instructions, tool definitions, early conversation items) remains identical across iterations, so only new tokens at the tail require fresh computation.

This is why certain configuration changes mid-conversation are expensive — they invalidate the cached prefix1:

  • Changing the tool list or MCP server configuration
  • Switching models
  • Modifying sandbox or approval settings
  • Changing the working directory

Codex mitigates this by appending new content rather than modifying earlier items wherever possible1.

Context Compaction

When token count exceeds the auto_compact_limit threshold, Codex invokes a dedicated /responses/compact endpoint9. This triggers a two-path process:

  1. Remote path (OpenAI models) — server-side compaction via the API
  2. Local path (any provider) — client-side LLM summarisation

The compaction generates a replacement conversation that includes a special type=compaction item with opaque encrypted_content9. This preserves the model’s latent understanding of the original conversation while dramatically reducing token count.

The summarisation prompt requests four specific sections10:

  1. Current progress and key decisions
  2. Important constraints and user preferences
  3. Remaining TODOs
  4. Critical data needed to continue work

⚠️ It is worth noting that compaction permanently deletes original tool outputs and model responses — unlike Claude Code’s layered approach, Codex commits to irreversible compression10.

flowchart LR
    A[Token count check] --> B{Exceeds threshold?}
    B -->|No| C[Continue normally]
    B -->|Yes| D[Call /responses/compact]
    D --> E[Replace history with compacted items]
    E --> F[Include compaction item with encrypted_content]
    F --> C

You can configure compaction behaviour in config.toml or via the API’s context_management parameter with a compact_threshold value9.

Putting It All Together: A Complete Turn

Here is what happens when you type fix the failing test in auth_test.go and press Enter:

  1. Prompt assembly — Codex collects your system instructions from config.toml and AGENTS.md, enumerates available tools, and packages everything with your message into JSON.

  2. First inference — the model receives the payload via the Responses API. It reasons about the task (producing reasoning events) and decides it needs to read the test file. It emits a function_call event for shell with cat auth_test.go.

  3. Tool execution — the ToolRouter checks the approval policy (Auto mode allows reads), spawns the command in the sandbox, and captures the output. The file contents are appended to the conversation.

  4. Second inference — the model now sees the test code. It identifies the bug and emits another function_call to write the fix via a file edit tool.

  5. Tool execution — the edit is applied to the local file system within the sandbox.

  6. Third inference — the model decides to run the test suite to verify. Another function_call for go test ./....

  7. Tool execution — tests run in the sandbox; output is captured and appended.

  8. Fourth inference — tests pass. The model emits a done event with the message: “Fixed the nil pointer check in TestAuthToken — all tests pass now.”

  9. Turn complete — Codex displays the message, and the full transcript is available for review or rollback via git.

Debugging the Loop

When things go wrong, understanding the loop helps you diagnose issues:

  • Stuck in a tool-call cycle — the model keeps calling tools without converging. Check whether your AGENTS.md instructions are contradictory or whether the task is genuinely ambiguous. Consider adding clearer constraints.

  • Compaction loop — a known issue where the agent repeatedly triggers compaction without making progress11. This typically indicates the task requires more context than can survive compaction. Break the task into smaller pieces.

  • Cache misses causing slow responses — if you notice degraded performance mid-session, you may have triggered a prefix invalidation. Avoid changing tools, models, or directories mid-turn when possible.

  • Unexpected approval prompts — review your sandbox mode and ensure your config.toml matches your workflow. The auto mode handles most development scenarios without interruption.

Key Takeaways

The Codex CLI agent loop is a well-engineered cycle of prompt assembly, model inference, tool execution, and context management. The critical design decisions — stateless requests for ZDR compliance, prompt caching for linear scaling, and compaction for long-running sessions — reflect the practical realities of building a production coding agent.

Understanding these internals lets you write better AGENTS.md instructions (keep them stable to preserve cache hits), structure tasks for efficient iteration (smaller, focused prompts converge faster), and debug when the agent behaves unexpectedly.

The loop is deliberately simple in concept — query, act, repeat — but the engineering that makes it fast, safe, and reliable at scale is anything but.
