Codex CLI Proxy Configuration: SOCKS, HTTP, and Corporate Networks

codex-cliproxysocks5corporate-networkenterprisetlsfirewallconfiguration

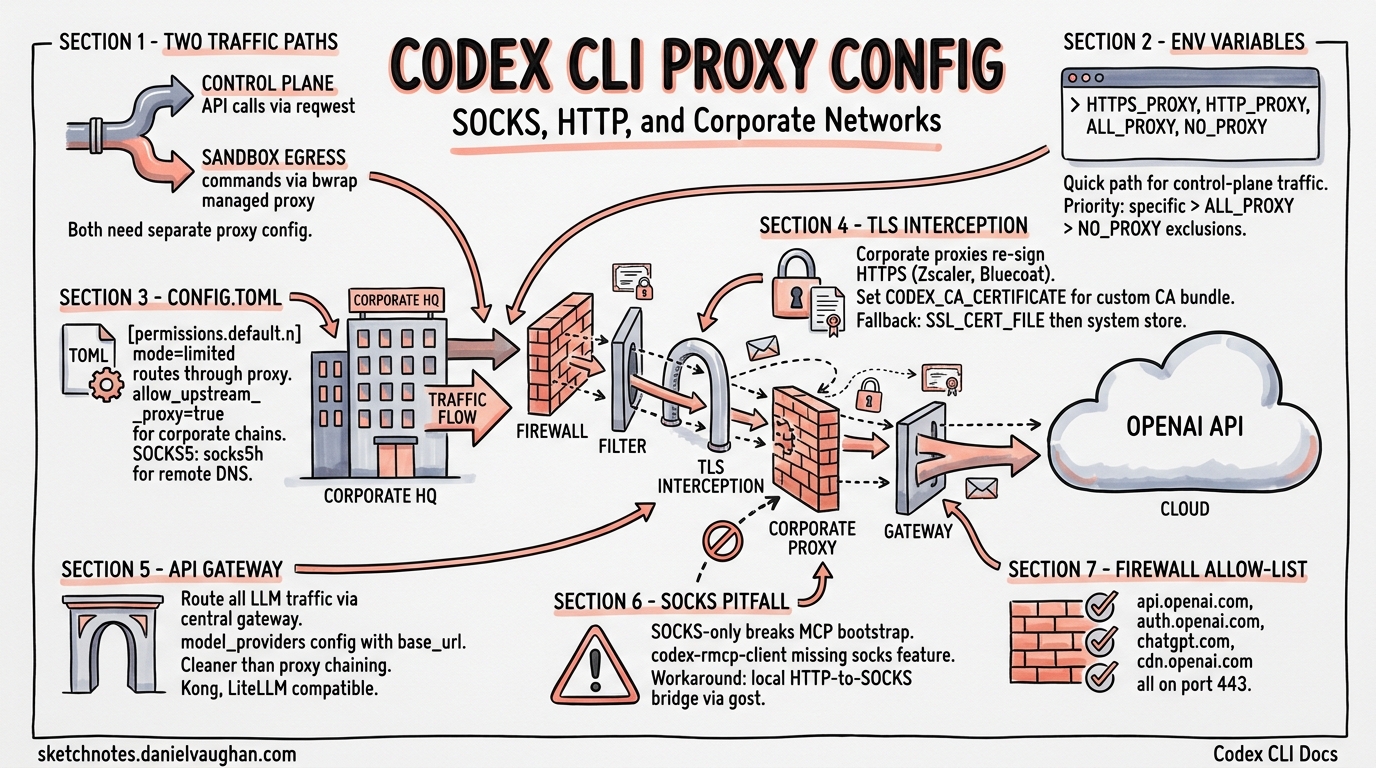

Sketchnote diagram for: Codex CLI Proxy Configuration: SOCKS, HTTP, and Corporate Networks

Codex CLI Proxy Configuration: SOCKS, HTTP, and Corporate Networks

Running Codex CLI behind a corporate proxy is one of the most common friction points in enterprise adoption. Between TLS-intercepting proxies, SOCKS tunnels, firewall allow-lists, and the CLI’s own managed network proxy, there are several layers to configure correctly. This guide covers every proxy scenario you are likely to encounter, from straightforward HTTP proxies to complex SOCKS-only corporate networks with custom certificate authorities.

How Codex CLI Handles Network Traffic

Codex CLI has two distinct networking paths that both need proxy configuration:

  1. Control-plane traffic — API calls to OpenAI (or your custom model provider), OAuth login flows, and telemetry. These use reqwest HTTP clients internally1.
  2. Sandbox egress traffic — commands executed inside the sandboxed agent environment. On Linux, this uses bwrap (bubblewrap) with a managed proxy bridge; on macOS, the sandbox enforces network policy at the OS level[^2].
flowchart TD
    A[Codex CLI Process] --> B{Traffic Type}
    B -->|Control Plane| C[reqwest HTTP Client]
    B -->|Sandbox Egress| D[Managed Proxy Bridge]
    C --> E{Proxy Configured?}
    E -->|Yes| F[HTTP/SOCKS5 Proxy]
    E -->|No| G[Direct Connection]
    F --> H[OpenAI API / Model Provider]
    G --> H
    D --> I[bwrap / macOS Sandbox]
    I --> J{Network Mode}
    J -->|limited| K[Proxy-Only Egress]
    J -->|full| L[Unrestricted Egress]
    K --> F

Understanding this split is critical: configuring environment variables alone handles control-plane traffic, but sandbox egress requires config.toml settings as well.

Environment Variables: The Quick Path

Codex CLI honours the standard proxy environment variables for its reqwest-based HTTP clients2. Set these before launching the CLI:

export HTTPS_PROXY="http://proxy.corp.example.com:8080"
export HTTP_PROXY="http://proxy.corp.example.com:8080"
export ALL_PROXY="http://proxy.corp.example.com:8080"
export NO_PROXY="localhost,127.0.0.1,.corp.example.com"

For WebSocket connections (used by codex --remote), set the corresponding variables:

export WS_PROXY="http://proxy.corp.example.com:8080"
export WSS_PROXY="http://proxy.corp.example.com:8080"

⚠️ As of v0.121.0, not all internal HTTP clients consistently read these variables. Some code paths — notably the OAuth login flow and Ollama integration — have historically required individual patches3. If you hit connectivity issues on a specific flow, check the open issues on GitHub.

Priority Order

When multiple variables are set, Codex follows the standard reqwest resolution order:

  1. HTTPS_PROXY / HTTP_PROXY (protocol-specific)
  2. ALL_PROXY (catch-all fallback)
  3. NO_PROXY exclusions applied last

Lowercase variants (https_proxy, http_proxy) are also respected, with uppercase taking precedence2.

config.toml: The Managed Network Proxy

For sandbox egress and fine-grained control, configure the managed network proxy in ~/.codex/config.toml (user-level) or .codex/config.toml (project-level)[^5].

HTTP Proxy Configuration

[permissions.default.network]
mode = "limited"                # "limited" routes through proxy; "full" is unrestricted
proxy_url = "http://proxy.corp.example.com:8080"
allow_upstream_proxy = true     # chain to corporate proxy from managed proxy

The allow_upstream_proxy setting is essential in corporate environments. When true, the managed proxy respects HTTP_PROXY / HTTPS_PROXY / ALL_PROXY for upstream requests, including CONNECT tunnels[^5]. Without it, the managed proxy attempts direct connections that your firewall will block.

SOCKS5 Proxy Configuration

[permissions.default.network]
mode = "limited"
enable_socks5 = true
socks_url = "socks5h://proxy.corp.example.com:1080"
enable_socks5_udp = false       # enable only if your proxy supports UDP relay

The socks5h scheme delegates DNS resolution to the proxy server — use this in corporate networks where internal DNS is not available on the developer’s machine. Use socks5 if you want local DNS resolution[^6].

Full Network Configuration Reference

[permissions.default.network]
mode = "limited"                              # "limited" | "full"
proxy_url = "http://proxy.corp.example.com:8080"
socks_url = "socks5h://proxy.corp.example.com:1080"
enable_socks5 = true
enable_socks5_udp = false
allow_upstream_proxy = true
allow_local_binding = false                   # permit local bind/listen ops
dangerously_allow_non_loopback_proxy = false  # bind on non-loopback addresses

Corporate TLS Proxies and Custom Certificates

Most corporate networks run TLS-intercepting proxies (Zscaler, Bluecoat, Forcepoint) that re-sign HTTPS traffic with an internal root CA. Codex CLI will reject these connections unless you provide the CA bundle4.

Setting the CA Bundle

export CODEX_CA_CERTIFICATE="/etc/pki/tls/certs/corporate-ca-bundle.pem"

The fallback chain is4:

  1. CODEX_CA_CERTIFICATE — Codex-specific, takes highest precedence
  2. SSL_CERT_FILE — standard OpenSSL variable
  3. System root certificate store

The PEM file can contain multiple certificates, and Codex tolerates OpenSSL TRUSTED CERTIFICATE labels and ignores well-formed X509 CRL sections in the same bundle4.

Verifying Your CA Setup

# Test that Codex can reach the API through your proxy
CODEX_CA_CERTIFICATE=/path/to/bundle.pem codex e ping

# If login fails separately, the OAuth flow may need the same CA
CODEX_CA_CERTIFICATE=/path/to/bundle.pem codex auth login

⚠️ OAuth login behind corporate TLS proxies has been a known pain point. If codex auth login fails with certificate errors even after setting CODEX_CA_CERTIFICATE, check GitHub issue #6849 for the latest workarounds5.

Routing Through an API Gateway

For organisations that mandate all LLM traffic flows through a central gateway (for logging, rate-limiting, or cost allocation), configure a custom model provider rather than a network proxy:

model_provider = "gateway"

[model_providers.gateway]
name = "OpenAI via corporate gateway"
base_url = "https://llm-gateway.corp.example.com/openai"
env_key = "OPENAI_API_KEY"
wire_api = "responses"

This approach is cleaner than proxy chaining when your gateway speaks the OpenAI API protocol. Kong AI Gateway[^9], LiteLLM, and custom reverse proxies all work with this pattern. You can also inject custom headers for internal authentication:

[model_providers.gateway]
name = "OpenAI via gateway with auth"
base_url = "https://llm-gateway.corp.example.com/openai"
env_key = "OPENAI_API_KEY"
wire_api = "responses"

[model_providers.gateway.http_headers]
X-Team-Id = "platform-engineering"

[model_providers.gateway.env_http_headers]
X-Gateway-Token = "GATEWAY_AUTH_TOKEN"

The SOCKS-Only Pitfall

A significant limitation exists when running Codex CLI with SOCKS proxy only (no HTTP proxy available). The main Codex execution flow works — codex e ping succeeds — but the MCP bootstrap for codex_apps fails because the codex-rmcp-client dependency does not enable the socks feature flag in its reqwest build6.

flowchart LR
    A[ALL_PROXY=socks5h://...] --> B{Code Path}
    B -->|Main CLI| C[reqwest + socks feature ✅]
    B -->|MCP Bootstrap| D[codex-rmcp-client ❌]
    D --> E[TunnelUnexpectedEof Error]
    C --> F[Connection Succeeds]

Workaround

Run a local HTTP-to-SOCKS proxy bridge and set both variable families:

# Start a local HTTP proxy that forwards to your SOCKS proxy
# (using gost, privoxy, or similar)
gost -L http://:8118 -F socks5://proxy.corp.example.com:1080

# Set both HTTP and SOCKS proxy variables
export HTTPS_PROXY="http://127.0.0.1:8118"
export HTTP_PROXY="http://127.0.0.1:8118"
export ALL_PROXY="socks5h://proxy.corp.example.com:1080"

This issue is tracked in GitHub issue #16360 and has cross-references to related fixes in #16550 and #175296.

Data Residency Configuration

For organisations subject to data residency requirements (EU, UK, or other regional mandates), redirect API traffic to the appropriate regional endpoint:

[model_providers.openaidr]
name = "OpenAI (US data residency)"
base_url = "https://us.api.openai.com/v1"
env_key = "OPENAI_API_KEY"
wire_api = "responses"

This can be combined with proxy configuration — set the model provider for data residency and environment variables for network routing[^11].

Firewall Allow-List

If your network security team requires explicit allow-listing, Codex CLI needs outbound access to these endpoints:

Endpoint Port Purpose
api.openai.com 443 API requests
auth.openai.com 443 OAuth login
chatgpt.com 443 MCP apps bootstrap
cdn.openai.com 443 Model/config downloads
Your model provider URL 443 Custom provider traffic

⚠️ The chatgpt.com endpoint is easy to miss — it is used by the optional codex_apps MCP integration and will cause bootstrap failures if blocked6.

Debugging Proxy Issues

When proxy configuration is not working, use these diagnostic steps:

# 1. Verify environment variables are set
env | grep -i proxy

# 2. Test basic connectivity
CODEX_LOG=debug codex e ping 2>&1 | grep -i proxy

# 3. Test with curl through the same proxy (baseline)
curl -x "$HTTPS_PROXY" https://api.openai.com/v1/models \
  -H "Authorization: Bearer $OPENAI_API_KEY"

# 4. Check if the managed proxy is starting
CODEX_LOG=trace codex e ping 2>&1 | grep -i "proxy\|socks\|bwrap"

Set CODEX_LOG=debug or CODEX_LOG=trace to see detailed proxy negotiation output. On Linux, check that bwrap is available and that your user has the necessary namespace permissions for the managed proxy bridge[^2].

Putting It All Together: Corporate Network Recipe

Here is a complete configuration for a typical corporate environment with a TLS-intercepting HTTP proxy, internal DNS, and data residency requirements:

# Shell profile (~/.bashrc or ~/.zshrc)
export HTTPS_PROXY="http://proxy.corp.example.com:8080"
export HTTP_PROXY="http://proxy.corp.example.com:8080"
export NO_PROXY="localhost,127.0.0.1,.corp.example.com"
export CODEX_CA_CERTIFICATE="/etc/pki/tls/certs/corp-ca-bundle.pem"

# ~/.codex/config.toml

[permissions.default.network]
mode = "limited"
proxy_url = "http://proxy.corp.example.com:8080"
allow_upstream_proxy = true

[sandbox_workspace_write]
network_access = true

This configuration ensures both control-plane and sandbox traffic route through the corporate proxy, with the custom CA bundle handling TLS interception transparently.

Citations

[^2]: [Agent approvals & security – Codex OpenAI Developers](https://developers.openai.com/codex/agent-approvals-security) — Describes the bwrap-based managed proxy and sandbox networking architecture.
[^5]: [Configuration Reference – Codex OpenAI Developers](https://developers.openai.com/codex/config-reference) — Official reference for all config.toml network and proxy settings.
[^6]: [Advanced Configuration – Codex OpenAI Developers](https://developers.openai.com/codex/config-advanced) — Advanced proxy, model provider, and authentication configuration.
[^9]: [How to: Route OpenAI Codex CLI traffic through AI Gateway Kong Docs](https://developer.konghq.com/how-to/use-codex-with-ai-gateway/) — Step-by-step guide for routing Codex traffic through Kong AI Gateway.
[^11]: [Advanced Configuration – Codex OpenAI Developers](https://developers.openai.com/codex/config-advanced) — Data residency endpoint configuration for regional compliance.

  1. Use proxy environment variables across Codex HTTP clients · Issue #4242 — Documents that Codex uses reqwest for HTTP clients and the current state of proxy variable support. ↩

  2. Support configuring outbound HTTP proxy via http_proxy in config.toml · Issue #6060 — Community discussion on proxy environment variable support and workarounds. ↩ ↩2

  3. Use proxy environment variables across Codex HTTP clients · Issue #4242 — Details inconsistent proxy handling across individual call sites. ↩

  4. Configuration – codex/docs/config.md — Documents CODEX_CA_CERTIFICATE, SSL_CERT_FILE fallback chain, and PEM format requirements. ↩ ↩2 ↩3

  5. OAuth Login Fails Behind Corporate Proxy with Custom CA Certificates · Issue #6849 — Tracks OAuth login failures behind TLS-intercepting proxies. ↩

  6. codex_apps MCP bootstrap fails on SOCKS-only ALL_PROXY · Issue #16360 — Documents the SOCKS-only limitation in codex-rmcp-client and workarounds. ↩ ↩2 ↩3
