MCP Elicitations in Codex CLI: Human-in-the-Loop Structured Input for Agent Workflows

mcpelicitationscodex-clihuman-in-the-loopapproval-policyguardiansecurityv0.129

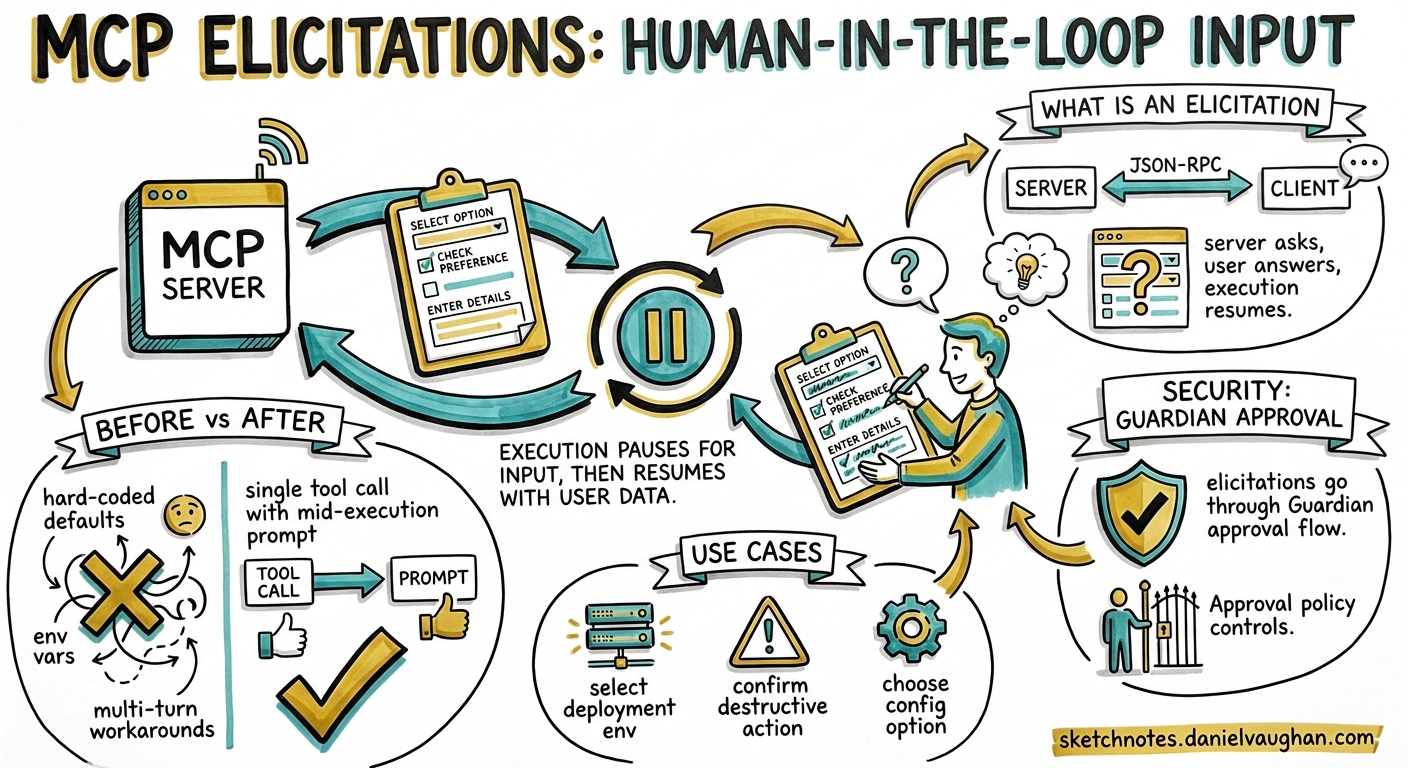

Sketchnote diagram for: MCP Elicitations in Codex CLI: Human-in-the-Loop Structured Input for Agent Workflows

MCP Elicitations in Codex CLI: Human-in-the-Loop Structured Input for Agent Workflows

Until Codex CLI v0.129, MCP servers were strictly one-directional during tool execution: the model called a tool, the server ran it, the result came back. If a server needed clarification — “which deployment environment?”, “confirm destructive migration?” — it had no standard way to ask. Developers resorted to hard-coding defaults, environment variables, or splitting workflows into multiple turns.

MCP elicitations change that. They give any MCP server a protocol-level mechanism to pause execution, present a structured form to the user, validate the response against a JSON Schema, and resume — all within a single tool call 1. Codex CLI v0.129.0 surfaces these elicitations through its TUI and Guardian approval flows, making them a first-class part of the agent security model 2.

What Is an MCP Elicitation?

An elicitation is a JSON-RPC request from an MCP server to its client (in this case, Codex CLI) asking for structured user input mid-execution. The server sends an elicitation/create message with a human-readable prompt and a JSON Schema describing the expected response 1.

{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "elicitation/create",
  "params": {
    "message": "Select the target deployment environment",
    "requestedSchema": {
      "type": "object",
      "properties": {
        "environment": {
          "type": "string",
          "enum": ["staging", "production", "canary"],
          "enumNames": ["Staging", "Production", "Canary"]
        },
        "confirm_destructive": {
          "type": "boolean",
          "title": "I confirm this may cause downtime"
        }
      },
      "required": ["environment", "confirm_destructive"]
    }
  }
}

The client renders this as a form, validates user input against the schema, and responds with one of three actions 1 3:

Action Meaning
accept User submitted validated data
decline User explicitly rejected the request
cancel User dismissed without choosing
{
  "jsonrpc": "2.0",
  "id": 1,
  "result": {
    "action": "accept",
    "content": {
      "environment": "staging",
      "confirm_destructive": true
    }
  }
}

Supported Schema Types

Elicitation schemas are deliberately constrained to flat objects with primitive properties — no nested objects, no complex arrays 3. This keeps client rendering simple and predictable:

Type Validation Constraints
string minLength, maxLength, pattern, formats: email, uri, date, date-time
number / integer minimum, maximum
boolean default value
enum Single-select via enum array with optional enumNames

This constraint is intentional. Elicitations are for quick, structured confirmation — not for building multi-page wizards inside a terminal.

How Codex CLI Surfaces Elicitations

TUI Rendering

When an MCP server sends an elicitation/create request during a tool call, Codex CLI pauses the agent turn and renders an inline form in the TUI. The user fills in the fields, and Codex validates against the JSON Schema before sending the response back to the server 2.

The flow integrates with the existing Guardian approval pipeline. If approvals_reviewer = "auto_review" is configured, the Guardian evaluates the elicitation request for risk indicators — data exfiltration patterns, credential probing, destructive operations — before deciding whether to surface it to the user or auto-reject it 4.

sequenceDiagram
    participant Model as Codex Agent
    participant Server as MCP Server
    participant CLI as Codex TUI
    participant User as Developer

    Model->>Server: tool call (e.g. deploy)
    Server->>CLI: elicitation/create (schema + message)
    CLI->>CLI: Guardian risk assessment
    alt Guardian approves
        CLI->>User: Render inline form
        User->>CLI: Submit response
        CLI->>CLI: Validate against JSON Schema
        CLI->>Server: {action: "accept", content: {...}}
    else Guardian rejects
        CLI->>Server: {action: "decline", content: null}
        CLI->>Model: Elicitation was auto-rejected
    end
    Server->>Model: Tool result

Approval Policy Configuration

MCP elicitations are controlled through the granular approval policy in config.toml 5:

[approval_policy.granular]
mcp_elicitations = true    # Surface elicitation prompts to the user
sandbox_approval = false   # Auto-approve sandbox operations
rules = false              # Auto-approve rule prompts
request_permissions = false
skill_approval = false

When mcp_elicitations = true, elicitation prompts surface in the TUI. When false (or when the parent policy is "never"), they are silently auto-rejected — the MCP server receives a decline action and must handle it gracefully 5.

This is critical for CI/CD pipelines where approval_policy = "never" is standard. Servers that rely on elicitations will receive decline responses in non-interactive contexts, so they must implement sensible fallback behaviour.

The Three Approval Modes

The interaction between the top-level approval_policy and the granular mcp_elicitations flag determines what happens:

# Mode 1: Full interactive (default for TUI sessions)
approval_policy = "on-request"
# All elicitations surface to the user

# Mode 2: Selective — only elicitations are interactive
[approval_policy.granular]
mcp_elicitations = true
sandbox_approval = false

# Mode 3: Fully autonomous (CI/CD)
approval_policy = "never"
# All elicitations auto-rejected

Writing an MCP Server That Uses Elicitations

Server-side, elicitations are straightforward. The server accesses the elicitation capability through the tool execution context 1:

import { McpServer } from "@modelcontextprotocol/sdk/server/mcp.js";

const server = new McpServer({
  name: "deploy-server",
  version: "1.0.0",
  capabilities: { elicitation: {} }
});

server.tool("deploy", "Deploy to an environment", {
  branch: { type: "string", description: "Git branch to deploy" }
}, async ({ branch }, { sendElicitationRequest }) => {
  // Ask the user which environment
  const result = await sendElicitationRequest({
    message: `Deploy branch '${branch}' — select target environment`,
    requestedSchema: {
      type: "object",
      properties: {
        env: {
          type: "string",
          enum: ["staging", "production"],
          enumNames: ["Staging", "Production"]
        }
      },
      required: ["env"]
    }
  });

  if (result.action !== "accept") {
    return { content: [{ type: "text", text: "Deployment cancelled by user." }] };
  }

  const env = result.content.env;
  // Proceed with deployment...
  return {
    content: [{ type: "text", text: `Deployed ${branch} to ${env}` }]
  };
});

Capability Negotiation

Clients declare elicitation support during the MCP initialize handshake 3:

{
  "capabilities": {
    "elicitation": {
      "form": {}
    }
  }
}

Servers should check for this capability before attempting an elicitation. If the client does not declare support, the server must not send elicitation/create requests — it should fall back to defaults or fail with a clear error.

Security Considerations

Elicitations introduce a new attack surface. A malicious or compromised MCP server could use elicitations to phish for credentials, trick users into confirming destructive operations, or exfiltrate data through carefully crafted form fields 4.

Codex CLI mitigates this through several mechanisms:

  1. Guardian review — When approvals_reviewer = "auto_review" is set, the Guardian agent evaluates each elicitation for risk indicators before surfacing it 4.

  2. Schema constraints — Only flat primitive types are permitted. No file uploads, no arbitrary HTML rendering, no embedded URLs in form mode 3.

  3. Credential isolation — The MCP spec explicitly states that sensitive data (passwords, API keys, OAuth tokens) must not be requested via form-mode elicitations. URL-mode elicitations exist for authentication flows, routing through agent-owned connect endpoints rather than exposing raw OAuth URLs 3.

  4. Granular policy control — Administrators can disable elicitations entirely via managed configuration whilst keeping other MCP functionality active 5.

Enterprise Hardening

For enterprise deployments using managed configuration, the recommended posture is:

# Managed config (admin-controlled, user cannot override)
[approval_policy.granular]
mcp_elicitations = true      # Allow elicitations from vetted servers
sandbox_approval = false
request_permissions = false

# Combined with MCP server allow-listing
[mcp_servers.internal-deploy]
command = "deploy-mcp-server"
enabled_tools = ["deploy", "rollback"]
# Only allow-listed servers can send elicitations

Practical Patterns

Database Migration Confirmation

An MCP server wrapping a migration tool can elicit confirmation before applying destructive changes:

const result = await sendElicitationRequest({
  message: "Migration includes DROP TABLE. Confirm target database:",
  requestedSchema: {
    type: "object",
    properties: {
      database: { type: "string", enum: ["dev", "staging"] },
      acknowledge_data_loss: { type: "boolean" }
    },
    required: ["database", "acknowledge_data_loss"]
  }
});

if (!result.content?.acknowledge_data_loss) {
  return { content: [{ type: "text", text: "Migration aborted." }] };
}

Multi-Step Workflow Gating

Combine elicitations with Codex CLI hooks for defence-in-depth. A PreToolUse hook can audit which MCP servers are attempting elicitations, whilst the elicitation itself confirms the specific action:

# config.toml — hook that logs elicitation-capable server activity
[[hooks]]
event = "PreToolUse"
command = "bash -c 'echo \"$(date): MCP tool $CODEX_TOOL_NAME called\" >> /tmp/mcp-audit.log'"

Limitations

  • No nested schemas — Complex configuration objects must be flattened or split across multiple elicitations 3.
  • No file input — Elicitations cannot request file uploads; use MCP resource subscriptions instead.
  • CI/CD incompatibility — In non-interactive contexts (approval_policy = "never"), all elicitations are auto-rejected. Servers must handle decline gracefully 5.
  • No elicitation history — Unlike tool calls, elicitation interactions are not currently persisted in session logs for replay. ⚠️
  • Rate limiting — The spec does not define limits on how frequently a server can send elicitation requests. A poorly written server could flood the TUI with prompts. ⚠️

When to Use Elicitations

Elicitations are the right choice when:

  • A tool needs runtime parameters that cannot be determined from context (target environment, confirmation of destructive action)
  • The information is security-sensitive enough to warrant explicit user consent
  • The workflow benefits from staying in a single turn rather than splitting into multiple agent interactions

They are not appropriate for:

  • Collecting complex, multi-page configuration (use a separate config file)
  • Authentication flows (use URL-mode elicitations or OAuth via codex mcp login)
  • Data that the agent could infer from the codebase or AGENTS.md context
