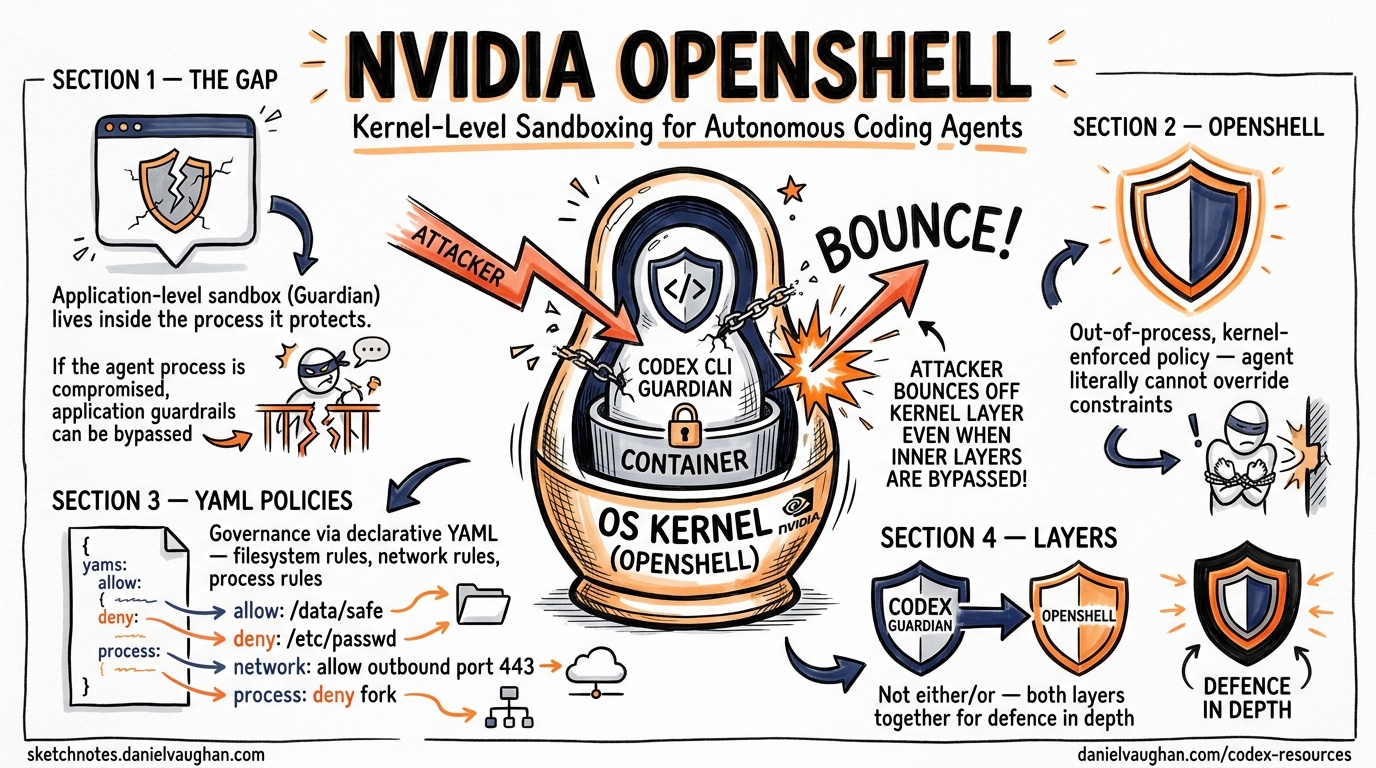

Sketchnote diagram for: NVIDIA OpenShell and Codex CLI: Kernel-Level Sandboxing for Autonomous Coding Agents

NVIDIA OpenShell and Codex CLI: Kernel-Level Sandboxing for Autonomous Coding Agents

Codex CLI ships with its own sandbox — a two-axis model combining approval policies and execution constraints ¹. For many individual developers, that is sufficient. But when you run agents autonomously in --full-auto mode, orchestrate multi-agent pipelines, or deploy across an enterprise fleet, the question shifts from “does the agent ask permission?” to “what happens if the agent itself is compromised?” NVIDIA’s answer is OpenShell — an open-source, kernel-enforced runtime that wraps any coding agent, Codex included, in an isolation layer governed entirely by declarative YAML policies ².

This article examines OpenShell’s architecture, walks through a practical Codex CLI integration, and maps its security model against Codex’s built-in controls to show where each layer fits.

Why Agent Sandboxing Needs a Separate Layer

Codex CLI’s built-in sandbox operates at the application level. The Guardian process intercepts tool calls and applies approval policies before execution ¹. This works well when the harness itself is trustworthy. The problem arises with long-running autonomous agents that accumulate context, hold persistent credentials, and potentially install new tooling mid-session. If the agent process is compromised — through prompt injection, a malicious MCP server, or a supply-chain attack on a dependency — application-level guardrails may be bypassed because they live inside the same process boundary they are supposed to protect ³.

OpenShell addresses this by enforcing policy out-of-process, at the operating system kernel level ². The agent literally cannot override the constraints, even if its own code is manipulated.

graph TB
    subgraph "Traditional Agent Security"
        A[Agent Process] --> B[Application-Level Guardrails]
        B --> C[OS / Filesystem / Network]
        style B fill:#ffcccc
    end

    subgraph "OpenShell Architecture"
        D[Agent Process] --> E[Kernel Enforcement Layer]
        E --> F[OS / Filesystem / Network]
        G[Policy Engine] --> E
        H[Privacy Router] --> E
        style E fill:#ccffcc
    end

OpenShell Architecture in Detail

OpenShell comprises four components that together form an agent control plane ²⁴.

The Sandbox

Each agent runs inside an isolated container orchestrated by a K3s Kubernetes cluster within a single Docker container ². The sandbox comes pre-loaded with common agent tooling — Python 3.13, Node.js 22, git, gh, vim — and pre-installs recognised agents including Codex, Claude Code, OpenCode, and GitHub Copilot ⁵.

The Policy Engine

Four enforcement domains govern what the agent can do ³⁴:

Domain	Enforcement Mechanism	Mutability
Filesystem	Landlock LSM (kernel)	Static — locked at sandbox creation
Network	OPA-evaluated HTTP CONNECT proxy	Hot-reloadable
Process	seccomp BPF syscall filtering	Static — locked at sandbox creation
Inference	API credential interception and routing	Hot-reloadable

The filesystem and process policies are immutable once the sandbox starts — an agent cannot suddenly escalate privileges or read sensitive paths it was not granted at creation ³. Network and inference policies can be updated live, allowing administrators to expand access as trust is established without restarting the session ².

The Privacy Router

This component intercepts LLM API calls, strips the caller’s credentials, and injects backend credentials according to organisational policy ⁴. The practical effect: you can route sensitive context to a local model running on an NVIDIA DGX Spark whilst directing non-sensitive requests to GPT-5.5 via the OpenAI API — all transparent to the agent ².

The Gateway

The gateway coordinates sandbox lifecycle, provides the authentication boundary, and serves the terminal dashboard UI accessible via openshell term ⁵.

Setting Up Codex CLI Inside OpenShell

Installation

# Binary install (recommended)
curl -LsSf https://raw.githubusercontent.com/NVIDIA/OpenShell/main/install.sh | sh

# Or via PyPI (requires uv)
uv tool install -U openshell

Launching Codex in a Sandbox

OpenShell auto-discovers OPENAI_API_KEY from your shell environment and injects it as a runtime environment variable — the key never touches the sandbox filesystem ⁵.

# Basic launch
openshell sandbox create -- codex

# With a specific working directory mounted
openshell sandbox create --mount /path/to/project:/workspace -- codex

# Remote deployment on a cloud VM
openshell sandbox create --remote user@dev-server -- codex

Once the sandbox is running, connect to it:

openshell sandbox connect my-sandbox

You are now inside an isolated environment where Codex CLI runs with full functionality but cannot escape the policy boundaries.

Writing a Policy for Codex Workflows

A typical Codex CLI workflow needs read/write access to the project directory, network access to the OpenAI API and package registries, and permission to run common development binaries. Here is a minimal policy ³⁴:

# codex-policy.yaml
filesystem:
  read:
    - /workspace
    - /tmp
    - /usr/local/bin
  write:
    - /workspace/src
    - /workspace/tests
    - /tmp

network:
  outbound:
    - host: "api.openai.com"
      ports: [443]
      methods: [GET, POST]
    - host: "registry.npmjs.org"
      ports: [443]
      methods: [GET]
    - host: "pypi.org"
      ports: [443]
      methods: [GET]
    - host: "api.github.com"
      ports: [443]
      methods: [GET, POST, PATCH]

process:
  allowed_binaries:
    - node
    - npm
    - npx
    - python3
    - pip
    - git
    - codex

Apply it:

openshell policy set my-sandbox --policy codex-policy.yaml --wait

With this policy active, Codex can install npm packages, run tests, and push to GitHub — but it cannot curl arbitrary endpoints, read files outside /workspace, or execute binaries not on the allowlist. Any denied action returns an HTTP 403 from the proxy or a kernel-level EACCES ³.

The Four-Layer Security Model

OpenShell positions itself as “Layer 0” in a defence-in-depth stack ⁴. Here is how it maps against Codex CLI’s own controls:

graph LR
    subgraph "Layer 0: OpenShell"
        L0[Kernel Enforcement]
    end
    subgraph "Layer 1: Codex Built-in"
        L1[Guardian + Approval Policy]
    end
    subgraph "Layer 2: Hooks"
        L2[codex_hooks on_agent_* events]
    end
    subgraph "Layer 3: CI/CD"
        L3[Post-execution validation gates]
    end

    L0 --> L1 --> L2 --> L3

Layer	Mechanism	Trust Model	When It Acts
0 — OpenShell	Landlock, seccomp, OPA proxy	Policy-as-physics	During execution
1 — Codex Guardian	Approval policy (`suggest`/`auto-edit`/`full-auto`)	Policy-as-logic	At moment of tool call
2 — Codex Hooks	`on_agent_tool_call`, `on_agent_patch` callbacks ⁶	Policy-as-observation	At moment of action
3 — CI/CD	Linters, tests, security scanners	Policy-as-verification	After execution

The critical insight: layers 1–3 all operate inside the agent process or downstream of it. Layer 0 operates outside the agent process entirely. A prompt injection that convinces Codex to bypass its own Guardian cannot bypass the kernel-level Landlock restrictions ³.

Credential Security

One of OpenShell’s most practically useful features is its credential isolation model ⁵:

Auto-discovery: The CLI detects OPENAI_API_KEY from your host environment
Runtime injection: Keys are passed as environment variables at sandbox creation — never written to the filesystem
Agent transparency: Codex sees the key in $OPENAI_API_KEY as normal and operates without modification
Exfiltration prevention: Network policies block any outbound connection not on the allowlist, so even if an agent reads the environment variable, it cannot transmit it to an unauthorised endpoint

This pattern is particularly valuable when running Codex in --full-auto mode with MCP servers that may themselves be untrusted ⁷.

Privacy-Aware Model Routing

For enterprises handling sensitive code, the Privacy Router enables a split-inference strategy ²⁴:

# Route sensitive inference to a local model
openshell inference set --provider local --model qwen3-coder:30b

# Route general inference to OpenAI
openshell inference set --provider openai --model gpt-5.5

The router intercepts API calls from the agent and redirects them based on policy rules. Codex CLI does not need any configuration changes — it calls the OpenAI API as normal, and the Privacy Router handles the redirection transparently ⁴. This enables hybrid deployments where proprietary code analysis stays on-premises whilst general coding assistance uses frontier models.

Real-World Deployment: NVIDIA’s Own Practice

NVIDIA uses its own infrastructure patterns to deploy Codex internally. Over 10,000 employees across engineering, product, legal, marketing, finance, and operations use GPT-5.5-powered Codex through remote SSH connections to approved cloud VMs, each running in a dedicated sandbox with read-only access to production systems and a zero-data-retention policy ⁸. Debugging cycles that previously stretched across days now close in hours, and multi-week experimentation compresses into overnight progress ⁸.

While NVIDIA has not publicly confirmed that its internal deployment uses OpenShell specifically, the architectural patterns — cloud VM isolation, credential injection, read-only policies, and full auditability — mirror OpenShell’s design precisely ²⁸.

Limitations and Caveats

OpenShell is currently alpha software in single-player mode ⁵. The project README is explicit: “one developer, one environment, one gateway.” Multi-tenant enterprise deployment is a stated future goal, not a current capability.

⚠️ GPU passthrough support is experimental and requires NVIDIA Container Toolkit on the host ⁵.

⚠️ Filesystem policies are immutable after sandbox creation — if you need to expand access, you must destroy and recreate the sandbox ³.

⚠️ The privacy router’s model-routing decisions depend on correct classification of sensitive vs. non-sensitive context, which is not yet automated — administrators must define routing rules manually ⁴.

When to Use OpenShell with Codex CLI

Scenario	Codex Built-in Sandbox	OpenShell + Codex
Interactive development (`suggest` mode)	Sufficient	Overkill
`auto-edit` on trusted codebases	Sufficient	Optional
`--full-auto` with untrusted MCP servers	Risky	Recommended
Multi-agent orchestration pipelines	Insufficient	Recommended
Enterprise fleet deployment	Insufficient	Recommended
Handling regulated or sensitive code	Insufficient	Essential

Getting Started Checklist

Install OpenShell: curl -LsSf https://raw.githubusercontent.com/NVIDIA/OpenShell/main/install.sh | sh
Ensure OPENAI_API_KEY is set in your shell environment
Create a sandbox: openshell sandbox create -- codex
Write a YAML policy scoped to your project’s needs
Apply the policy: openshell policy set <name> --policy policy.yaml --wait
Connect and work: openshell sandbox connect <name>
Monitor with the terminal dashboard: openshell term
