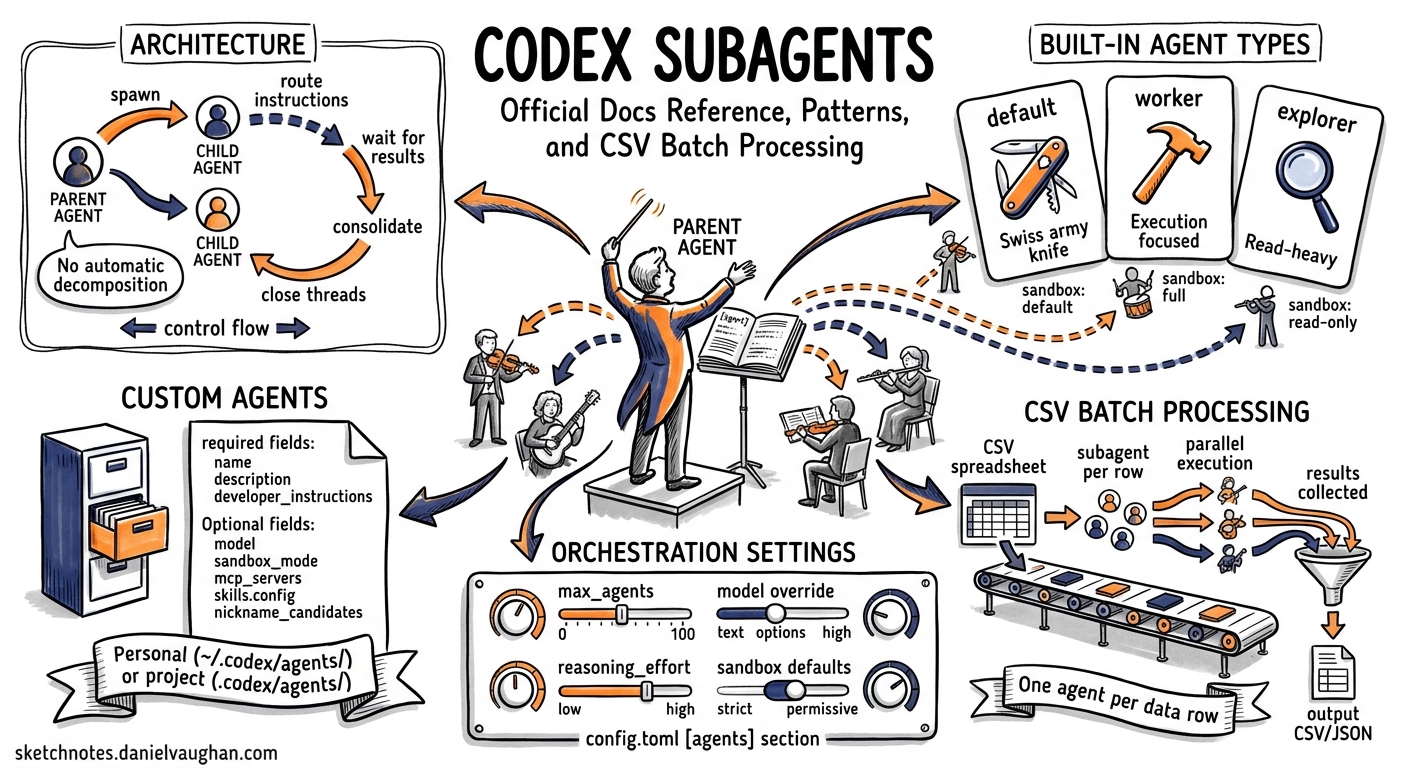

Sketchnote diagram for: The Official Codex Subagents Documentation — Architecture, Patterns, and CSV Batch Processing

The Official Codex Subagents Documentation

OpenAI’s official subagents documentation page has matured into a comprehensive reference for multi-agent Codex workflows. This article captures the key patterns and configuration details as of May 2026.

Architecture

Codex spawns subagents only on explicit request — there is no automatic decomposition. The system manages:

  • Spawning new agents with specific roles
  • Routing follow-up instructions to the correct thread
  • Waiting for all results before consolidating a response
  • Closing agent threads on completion

Built-in Agent Types

Three agents ship by default:

Agent Purpose
default General-purpose fallback
worker Execution-focused — implementation and fixes
explorer Read-heavy codebase exploration

Custom Agent Configuration

Custom agents are TOML files in ~/.codex/agents/ (personal) or .codex/agents/ (project-scoped).

Required fields:

  • name — agent identifier
  • description — when Codex should deploy this agent
  • developer_instructions — core behavioural guidelines

Optional fields (inherit from parent if omitted):

  • model, model_reasoning_effort
  • sandbox_mode (e.g. "read-only" for explorers)
  • mcp_servers
  • skills.config
  • nickname_candidates — readable labels for multiple instances

Global Orchestration Settings

The [agents] section in config.toml controls:

Setting Default Purpose
max_threads 6 Maximum concurrent open threads
max_depth 1 Nesting depth for spawned agents
job_max_runtime_seconds — Timeout per worker for CSV jobs

Important: Raising max_depth beyond 1 multiplies resource costs through recursive delegation. Most workflows should stay at depth 1.

Sandbox and Approval Inheritance

Subagents inherit the parent session’s sandbox policy. During interactive sessions:

  • Approval requests from inactive threads surface with source labels
  • Users press o to inspect the thread before approving
  • Live runtime overrides (e.g. /approvals changes) propagate to child agents
  • Individual agents can override sandbox (e.g. sandbox_mode = "read-only")

CSV Batch Processing (Experimental)

The spawn_agents_on_csv tool automates repetitive work across data rows:

spawn_agents_on_csv(
  csv_path="tasks.csv",
  instruction="Review {file_path} for security issues and report findings",
  id_column="task_id",
  output_schema={"severity": "string", "findings": "string"},
  output_csv_path="results.csv",
  max_concurrency=4,
  max_runtime_seconds=300
)

Workers call report_agent_job_result to submit results. The system collects all results into a combined CSV with metadata.

Documented Use-Case Patterns

PR Review (Three-Agent Split)

  • pr_explorer (read-only) — maps codebase, gathers evidence
  • reviewer — checks correctness, security, test coverage
  • docs_researcher — validates framework APIs via MCP server

Frontend Debugging

  • code_mapper (read-only) — locates relevant code paths
  • browser_debugger — reproduces issues, captures evidence
  • ui_fixer — implements targeted fixes

Thread Management

  • CLI: /agent to switch threads, inspect ongoing work
  • Codex App and CLI: full activity visibility
  • IDE Extension: coming soon
  • Direct steering: ask Codex to control, stop, or close running subagents

Token Implications

Each subagent performs independent model and tool work. Token consumption scales linearly with agent count. The docs explicitly note this as a cost consideration.

What This Means for Agentic Pod Architecture

The official docs now validate several patterns from Daniel’s agentic pod research:

  1. Role specialisation — read-only explorers, execution workers, domain experts
  2. Shallow orchestration — depth 1 is the recommended default
  3. Project-scoped agents — .codex/agents/ enables per-repo agent teams
  4. CSV fan-out — batch processing pattern for audit/migration workflows

The missing pieces remain: cross-session state sharing, agent-to-agent direct communication, and durable task queues. These gaps are where tools like oh-my-codex, Symphony, and the agent graph store (PR #20689) fill in.
