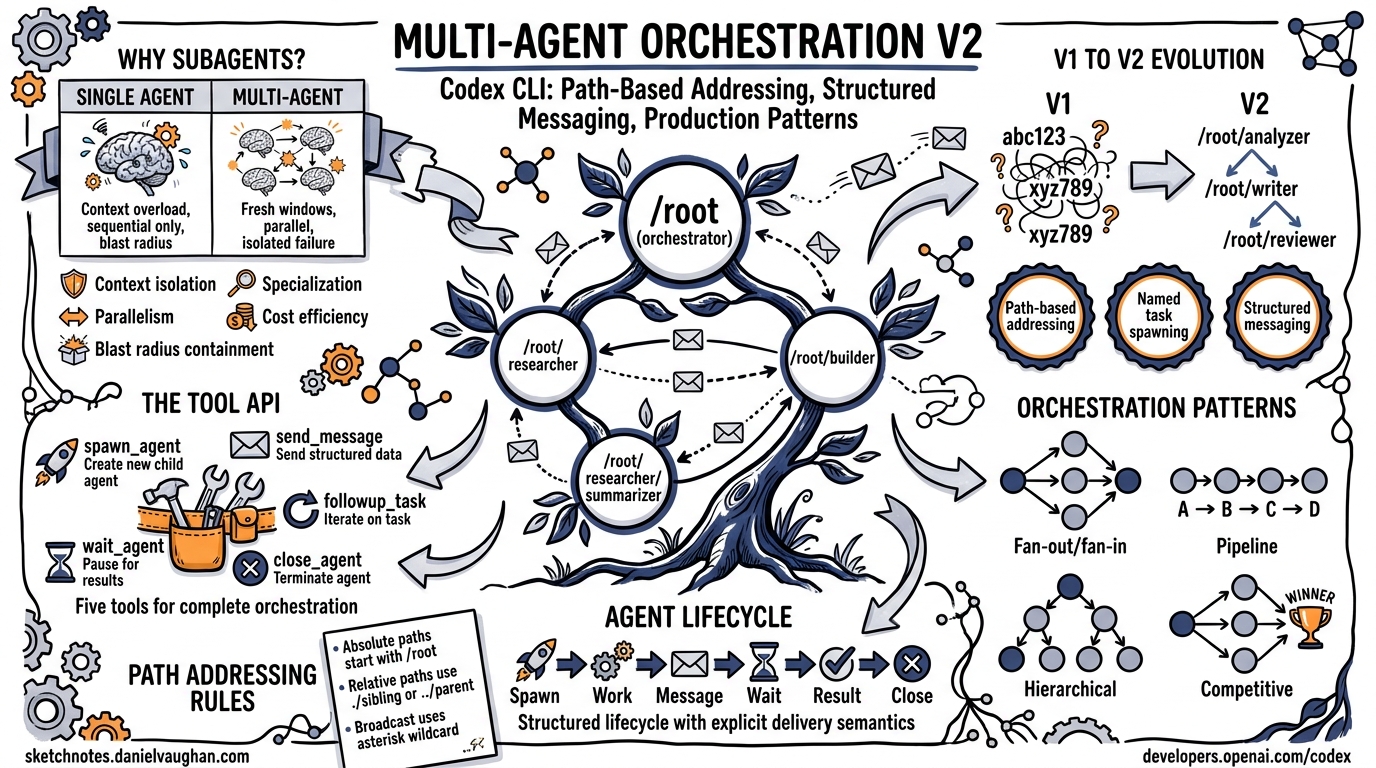

Sketchnote diagram for: Codex CLI Multi-Agent Orchestration v2: Complete Guide

Codex CLI Multi-Agent Orchestration v2: Complete Guide

Codex CLI’s multi-agent system lets an orchestrator agent spawn, coordinate, and collect results from multiple subagents. Multi-agent v2 replaces opaque thread IDs with path-based addressing and introduces structured messaging tools that make complex orchestration patterns practical at production scale.

This guide covers the full system: why subagents exist, the v2 architecture, path-based addressing, the tool API, orchestration patterns, production case studies, and configuration reference.

Why Subagents Exist

Single-agent execution hits predictable limits as tasks grow in scope:

Constraint Single Agent Multi-Agent
Context window One window for everything Each agent gets a fresh window
Parallelism Sequential tool calls only Agents run concurrently
Blast radius A hallucination poisons the whole session Isolated failure per agent
Specialization One prompt must cover all roles Role-specific instructions per agent
Token cost Long context = higher per-token cost Shorter contexts per agent

Subagents solve these problems by decomposing a large task into isolated, parallelizable units of work. The orchestrator delegates subtasks, each subagent works in its own context window with its own sandbox, and results flow back through structured channels.

Multi-Agent v2 Architecture

From v1 to v2

Multi-agent v1 used opaque ThreadId strings as agent identifiers. This worked for simple parent-child relationships but broke down when agents needed to address siblings, query the topology, or route messages through a hierarchy.

Multi-agent v2 introduces three architectural changes:

  1. Path-based addressing – agents are identified by hierarchical paths like /root/researcher/summarizer
  2. Named task spawning – every spawn_agent call requires a task_name, making the agent tree human-readable
  3. Structured messaging – send_message and followup_task replace raw inter-thread communication with explicit delivery semantics

Agent Lifecycle

sequenceDiagram
    participant O as Orchestrator (/root)
    participant A as Agent A (/root/analyzer)
    participant B as Agent B (/root/builder)

    O->>A: spawn_agent(task_name="analyzer", message="Analyze the API surface")
    O->>B: spawn_agent(task_name="builder", message="Implement the endpoints")
    O->>O: wait_agent(target="analyzer")
    A-->>O: result (via final channel)
    O->>B: send_message(target="builder", message="Analyzer found 3 endpoints...")
    O->>O: wait_agent(target="builder")
    B-->>O: result (via final channel)
    O->>A: close_agent(target="analyzer")
    O->>B: close_agent(target="builder")

When a subagent is spawned, it receives developer instructions explaining its role:

You are a newly spawned agent in a team of agents collaborating to complete a task. You can spawn sub-agents to handle subtasks, and those sub-agents can spawn their own sub-agents. You are responsible for returning the response to your assigned task in the final channel. When you give your response, the contents of your response in the final channel will be immediately delivered back to your parent agent. The prior conversation history was forked from your parent agent. Treat the next user message as your assigned task, and use the forked history only as background context.

Path-Based Addressing

Path Structure

Every agent in a session has a canonical path rooted at /root:

/root                          # The primary orchestrator
/root/researcher               # A child agent named "researcher"
/root/researcher/summarizer    # A grandchild agent
/root/builder                  # A sibling of "researcher"

Paths are constructed from the task_name parameter passed to spawn_agent. Agent names must use only lowercase letters, digits, and underscores. The name root is reserved for the primary agent.

Addressing Rules

Reference Type Syntax Example Resolution
Absolute Starts with /root /root/builder Resolves globally
Relative No leading / worker Resolves from the current agent’s path
Root /root /root Always resolves to the primary agent

From /root/researcher, the reference summarizer resolves to /root/researcher/summarizer. The reference /root/builder resolves to the absolute path regardless of the caller’s position.

Validation

Agent names are validated at creation time:

  • Must not be empty
  • Must not be root, ., or ..
  • Must not contain /
  • Must use only [a-z0-9_] characters

Paths must start with /root and must not end with a trailing /.

Hierarchical Routing

The path system enables hierarchical discovery. An orchestrator at /root can address any descendant by path. Subagents can address siblings through their parent, or use absolute paths to reach any agent in the tree.

graph TD
    root["/root (orchestrator)"] --> researcher["/root/researcher"]
    root --> builder["/root/builder"]
    root --> reviewer["/root/reviewer"]
    researcher --> summarizer["/root/researcher/summarizer"]
    researcher --> fetcher["/root/researcher/fetcher"]
    builder --> tests["/root/builder/tests"]

Task Assignment Tools

Multi-agent v2 provides six tools for agent lifecycle management and communication.

spawn_agent

Creates a new subagent with an isolated context window and sandbox.

Parameters:

Parameter Type Required Description
message string yes The task prompt for the new agent
task_name string yes Name segment appended to the parent’s path
agent_type string no Role name (maps to a role config in .codex/)
model string no Model override for this agent
reasoning_effort string no "low", "medium", or "high"
fork_turns string no "all" to fork the parent’s full conversation history

Returns: { "task_name": "/root/analyzer" } (or includes nickname if metadata is not hidden).

Example:

{
  "message": "Analyze all Python files in src/ for security vulnerabilities. Report findings as a JSON array.",
  "task_name": "security_scan",
  "agent_type": "analyzer",
  "model": "o3",
  "reasoning_effort": "high"
}

Depth limit: Agents can spawn sub-agents recursively up to agent_max_depth (default: 3). Exceeding the limit returns an error instructing the agent to solve the task itself.

send_message

Sends a text message to a running agent and triggers a new turn.

Parameters:

Parameter Type Required Description
target string yes Absolute or relative agent path
message string yes The message content

Messages cannot be sent to /root (the primary agent). Empty messages are rejected.

followup_task

Queues a message for an agent without immediately triggering a turn. Useful for batching instructions before a wait_agent call.

Parameters:

Parameter Type Required Description
target string yes Agent path
message string yes The follow-up task description
interrupt boolean no If true, interrupts the agent’s current turn

wait_agent

Blocks until the target agent completes its current turn and returns its result.

Parameters:

Parameter Type Required Description
target string yes Agent path to wait on

Returns: The agent’s final-channel response text, along with status metadata.

list_agents

Returns the current state of all agents in the session, including their paths, roles, and statuses (active, idle, or closed).

Parameters: None.

close_agent

Terminates an agent and releases its resources.

Parameters:

Parameter Type Required Description
target string yes Agent path to close

Orchestration Patterns

Sequential Pattern

Agents complete tasks one after another in a fixed order. Each step depends on the output of the previous step.

graph LR
    A[Agent A: Analyze] --> B[Agent B: Implement] --> C[Agent C: Test]

When to use: Pipeline workflows where each stage transforms the output of the previous one. Example: analyze requirements, then generate code, then write tests.

Implementation:

1. spawn_agent(task_name="analyzer", message="Analyze the requirements...")
2. wait_agent(target="analyzer")
3. spawn_agent(task_name="implementer", message="Based on analysis: {result}...")
4. wait_agent(target="implementer")
5. spawn_agent(task_name="tester", message="Write tests for: {result}...")
6. wait_agent(target="tester")
7. close_agent for all

Trade-off: Maximizes coherence between stages but offers no parallelism. Total latency is the sum of all stages.

Parallel Pattern

Multiple agents work simultaneously on independent tasks. An orchestrator fans out work and collects results.

graph TD
    O[Orchestrator] --> X[Agent X: Frontend]
    O --> Y[Agent Y: Backend]
    O --> Z[Agent Z: Database]
    X --> O
    Y --> O
    Z --> O

When to use: Independent subtasks that share no state. Example: implementing separate microservices, reviewing independent files, or searching multiple codebases.

Implementation:

1. spawn_agent(task_name="frontend", message="Build the React components...")
2. spawn_agent(task_name="backend", message="Build the API endpoints...")
3. spawn_agent(task_name="database", message="Write the migration scripts...")
4. wait_agent(target="frontend")
5. wait_agent(target="backend")
6. wait_agent(target="database")
7. Merge results
8. close_agent for all

Trade-off: Maximum throughput for independent tasks, but requires the orchestrator to merge potentially conflicting file changes.

Wave-Based Pattern

Agents work in synchronized phases (“waves”), where each wave builds on the results of the previous one.

graph TD
    subgraph Wave 1: Discovery
        D1[Discover APIs]
        D2[Discover Schemas]
    end
    subgraph Wave 2: Analysis
        A1[Analyze Dependencies]
        A2[Analyze Patterns]
    end
    subgraph Wave 3: Execution
        E1[Generate Code]
        E2[Generate Tests]
    end
    D1 --> A1
    D2 --> A2
    A1 --> E1
    A2 --> E2

When to use: Tasks with internal dependencies that can still benefit from parallelism within each phase. Example: first discover all endpoints in parallel, then analyze them in parallel, then implement them in parallel.

Implementation:

# Wave 1: Discovery (parallel)
spawn_agent(task_name="discover_apis", ...)
spawn_agent(task_name="discover_schemas", ...)
wait_agent(target="discover_apis")
wait_agent(target="discover_schemas")

# Wave 2: Analysis (parallel, using wave 1 results)
spawn_agent(task_name="analyze_deps", message="Given APIs: {apis} and schemas: {schemas}...")
spawn_agent(task_name="analyze_patterns", message="Given APIs: {apis}...")
wait_agent(target="analyze_deps")
wait_agent(target="analyze_patterns")

# Wave 3: Execution (parallel, using wave 2 results)
spawn_agent(task_name="gen_code", message="Implement based on: {analysis}...")
spawn_agent(task_name="gen_tests", message="Test based on: {analysis}...")
wait_agent(target="gen_code")
wait_agent(target="gen_tests")

Trade-off: Balances parallelism with coordination. Each wave synchronizes before the next begins, so information flows correctly between phases.

Dispatcher Pattern

A central dispatcher routes incoming requests to specialized agents based on content type or domain.

graph TD
    D[Dispatcher] -->|Request| A[Agent A]
    D -->|Request| B[Agent B]
    D -->|Request| C[Agent C]
    A -->|Response| D
    B -->|Response| D
    C -->|Response| D

When to use: Heterogeneous workloads where different request types require different agent configurations (models, roles, reasoning effort).

Peer-to-Peer Pattern

Agents communicate directly with siblings via send_message using absolute paths, without routing through the orchestrator.

When to use: Collaborative tasks where agents need to share intermediate findings, such as a researcher sending context to a builder without the orchestrator mediating every exchange.

Defining Custom Agent Roles

Agent roles provide per-type configuration through files in .codex/agents/:

.codex/
  agents/
    analyzer.md          # Instructions for "analyzer" role
    builder.md           # Instructions for "builder" role
    reviewer.md          # Instructions for "reviewer" role

When spawn_agent includes agent_type: "analyzer", the agent loads .codex/agents/analyzer.md as additional instructions and may apply role-specific configuration (model overrides, sandbox settings, etc.).

Role configuration supports:

  • Specialized instructions – domain-specific prompts for each role
  • Model overrides – use a more capable model for complex analysis, a faster model for simple tasks
  • Sandbox mode – restrict write access for read-only roles
  • Reasoning effort – set per-role reasoning effort defaults

Production Case Studies

Case Study 1: FinTech Compliance Pipeline

A financial services team uses wave-based orchestration to process regulatory compliance checks across 200+ microservices:

  • Wave 1: 8 discovery agents scan service repositories for API contracts, database schemas, and configuration files
  • Wave 2: 4 analysis agents cross-reference discovered contracts against compliance rules
  • Wave 3: 2 remediation agents generate patches for non-compliant services

Results: Reduced compliance review from 3 developer-days to 45 minutes. Each agent operates in a workspace-read sandbox to prevent accidental modifications during discovery and analysis phases.

Case Study 2: IoT Fleet Firmware Updates

An IoT platform team orchestrates firmware validation across device families:

  • Orchestrator spawns one validator agent per device family (ARM Cortex-M, RISC-V, ESP32)
  • Each validator spawns sub-agents for: binary analysis, dependency checking, and regression test generation
  • Results aggregate at the orchestrator, which produces a go/no-go release matrix

Results: Parallel validation across 6 device families completes in 12 minutes instead of the previous 4-hour sequential process. Agent depth of 2 (orchestrator -> validator -> sub-task) keeps context windows focused.

Case Study 3: Monorepo Cross-Service Refactoring

A platform team uses the parallel pattern to refactor a shared library across 15 consuming services:

  • Orchestrator analyzes the library’s API surface and identifies breaking changes
  • Spawns 15 parallel migrator agents, one per consuming service
  • Each migrator updates imports, adapts call sites, and runs the service’s test suite
  • Orchestrator collects results and creates a unified PR

Key insight: Using fork_turns: "all" when spawning migrators gives each agent the orchestrator’s analysis context without re-analyzing the library, saving tokens and time.

Configuration Reference

Multi-Agent v2 Settings

In ~/.codex/config.toml or .codex/config.toml:

# Maximum depth of agent spawning (default: 3)
agent_max_depth = 3

# Multi-agent v2 specific settings
[multi_agent_v2]
# Hide agent metadata (thread IDs, nicknames) in spawn results
hide_spawn_agent_metadata = false

Agent Role Configuration

Place role-specific config in .codex/agents/<role_name>.md:

You are a security analyzer. Focus exclusively on:
- SQL injection vulnerabilities
- Authentication bypasses
- Secrets in source code

Report findings as structured JSON with severity levels.

Feature Flags

Multi-agent v2 requires the collaboration feature to be enabled:

[features]
multi_agent_v2 = true

TUI Keyboard Shortcuts

When multiple agents are active, the TUI provides navigation:

Shortcut Action
Alt+Left Switch to previous agent
Alt+Right Switch to next agent
/agent Open agent picker

Sandbox Inheritance

Subagents inherit their parent’s sandbox policy by default. A subagent cannot escalate beyond the parent’s sandbox level – an agent in workspace-read cannot spawn a child in workspace-write.

Shell Environment Policy

The shell_environment_policy controls which environment variables are available to agent shell commands:

[shell_environment_policy]
inherit = "core"     # "core" or "all"

[shell_environment_policy.set]
CI = "false"
MY_TEAM = "codex"

When inherit = "core", only platform-essential variables (HOME, PATH, SHELL, USER, LOGNAME) pass through. Default exclude patterns filter variables containing KEY, SECRET, or TOKEN to prevent accidental credential leakage to subprocesses.

Summary

Multi-agent v2 transforms Codex CLI from a single-agent tool into a structured orchestration platform. Path-based addressing makes agent hierarchies navigable and debuggable. The six core tools – spawn_agent, send_message, followup_task, wait_agent, list_agents, and close_agent – provide the primitives for any orchestration pattern: sequential pipelines, parallel fan-out, wave-based phasing, dispatcher routing, or peer-to-peer collaboration.

The key design decisions – isolated context windows, sandbox inheritance, depth limits, and structured messaging – keep multi-agent sessions predictable and safe at production scale.
