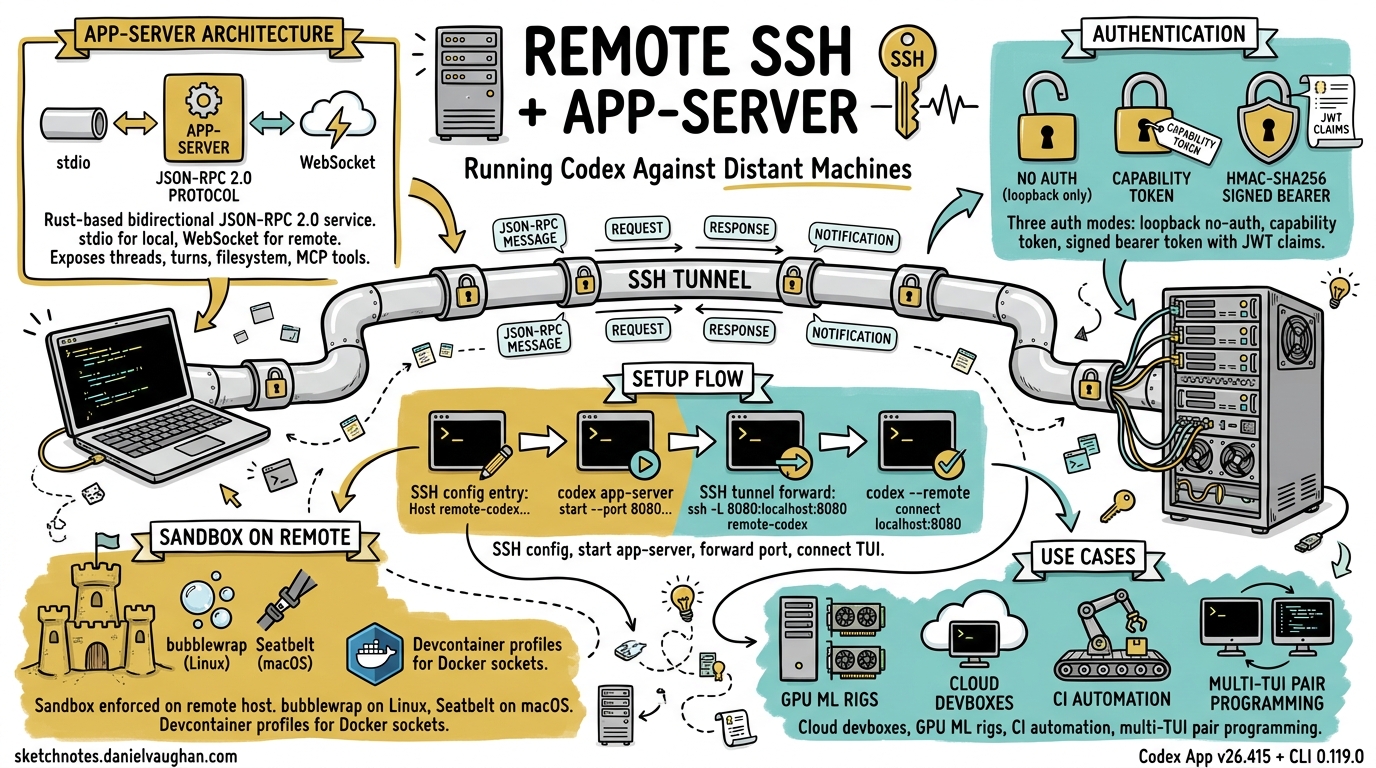

Sketchnote diagram for: Remote SSH and the App-Server Architecture: Running Codex Against Distant Machines

Remote SSH and the App-Server Architecture: Running Codex Against Distant Machines

Professional development rarely happens on a single laptop. GPU rigs, staging clusters, production-like devboxes, and CI runners all live elsewhere. Until April 2026, Codex users who needed to work against remote filesystems relied on workarounds — sshfs mounts, rsync scripts, or running Codex headlessly inside a tmux session. The Codex App v26.415 release changed that with native remote SSH connections (alpha) 1, backed by the Rust-based app-server that has been maturing since the 0.119.0 CLI release 2. This article unpacks the architecture, walks through setup, and covers the security model you need to understand before pointing Codex at a distant machine.

Why Remote Matters

The original feature request — GitHub issue #10450, filed in February 2026 — accumulated over 560 upvotes 3. The community’s requirements were clear: the remote filesystem must be the single source of truth (no local clone), commands must execute on the remote host, and developers must be able to connect to multiple machines simultaneously. VS Code’s Remote SSH extension had set the expectation; Codex needed parity.

Architecture Overview

The remote story rests on the app-server, a bidirectional JSON-RPC 2.0 service compiled as part of codex-rs 4. It exposes every Codex primitive — threads, turns, items, filesystem operations, approval flows, and MCP tool calls — over two transports:

Transport Mode Use case
stdio (default) Newline-delimited JSON (JSONL) Local embeddings, IDE extensions
WebSocket (experimental) One JSON-RPC message per text frame Remote TUI, third-party clients
graph LR
    A[Developer Laptop] -->|SSH tunnel or direct WSS| B[App-Server on Remote Host]
    B --> C[Sandbox / Filesystem]
    B --> D[Shell Execution]
    B --> E[MCP Servers & Plugins]
    A -->|TUI renders locally| F[Codex TUI]

When you connect the TUI to a remote app-server, every file read, write, command execution, and agent turn happens on the remote host. The TUI is a thin rendering layer that sends JSON-RPC requests and streams back notifications 4.

Setting Up Remote SSH in the Codex App

The Codex App (v26.415) wraps the CLI plumbing behind a graphical flow 1. Under the hood, it reads your ~/.ssh/config, resolves concrete host aliases, and starts the remote app-server over SSH.

Prerequisites

  1. SSH config entry with a concrete alias (pattern-only hosts are ignored) 5:
Host devbox
  HostName devbox.example.com
  User you
  IdentityFile ~/.ssh/id_ed25519
  1. Codex installed on the remote host and available on the login shell’s PATH 5.
  2. Codex authenticated on the remote host (run codex auth once).

Connecting

Open Settings → Connections in the Codex App, add or enable the SSH host, then choose a remote project folder. Threads created against that project execute commands, read files, and write changes entirely on the remote system 5.

Setting Up Remote TUI via the CLI

For terminal purists, the CLI offers direct control over the app-server and TUI pairing.

Start the app-server on the remote host

# On the remote machine — bind to loopback for SSH forwarding
codex app-server --listen ws://127.0.0.1:4500

Forward the port and connect locally

# Terminal 1: SSH tunnel
ssh -L 4500:127.0.0.1:4500 devbox

# Terminal 2: connect the TUI
codex --remote ws://127.0.0.1:4500

The --remote flag accepts ws:// and wss:// addresses 6. For plain WebSocket connections, prefer loopback addresses or SSH port forwarding — the TUI will only send authentication tokens over wss:// or loopback ws:// URLs 6.

Remote --cd forwarding

Since CLI 0.119.0, the --cd flag propagates through to the remote app-server, so you can specify the working directory without logging in first 2:

codex --remote ws://127.0.0.1:4500 --cd /home/you/project

Authentication and Security

The app-server supports three WebSocket authentication modes, each suited to a different trust boundary 46:

1. No Auth (loopback only)

Suitable for 127.0.0.1 listeners behind SSH tunnels. Non-loopback listeners without auth log warnings and should not be used in shared environments.

2. Capability Token

Generate a random token on the remote host and share it with the client:

# Remote host
TOKEN_FILE="$HOME/.codex/codex-app-server-token"
install -d -m 700 "$(dirname "$TOKEN_FILE")"
openssl rand -base64 32 > "$TOKEN_FILE"
chmod 600 "$TOKEN_FILE"

codex app-server --listen ws://0.0.0.0:4500 \
  --ws-auth capability-token \
  --ws-token-file "$TOKEN_FILE"

# Local machine
export CODEX_REMOTE_AUTH_TOKEN="$(ssh devbox 'cat ~/.codex/codex-app-server-token')"
codex --remote wss://codex-devbox.example.com:4500 \
  --remote-auth-token-env CODEX_REMOTE_AUTH_TOKEN

3. Signed Bearer Token (HMAC-SHA256)

For enterprise deployments where token rotation and audience validation matter:

codex app-server --listen ws://0.0.0.0:4500 \
  --ws-auth signed-bearer-token \
  --ws-shared-secret-file /etc/codex/hmac-secret

Tokens must carry an exp claim; the server also validates nbf, iss, and aud when present 4. This mode pairs well with short-lived JWTs issued by an internal auth service.

sequenceDiagram
    participant TUI as Codex TUI (local)
    participant SSH as SSH Tunnel / TLS
    participant AS as App-Server (remote)

    TUI->>SSH: WebSocket handshake + Bearer token
    SSH->>AS: Forward to loopback
    AS->>AS: Validate token (capability / HMAC)
    AS-->>TUI: initialize response
    TUI->>AS: thread/start
    AS-->>TUI: thread/started notification
    TUI->>AS: turn/start (user prompt)
    AS->>AS: Agent executes on remote FS
    AS-->>TUI: item/* delta notifications (streaming)
    AS-->>TUI: turn/completed

Security Best Practices

  • Never expose an unauthenticated app-server on a shared or public network 5.
  • Use SSH port forwarding or a VPN/mesh network (e.g. Tailscale) rather than binding to 0.0.0.0 without TLS 5.
  • Apply the same trust posture as normal SSH access: trusted keys, least-privilege accounts, no unauthenticated public listeners 5.
  • Non-local ws:// connections silently refuse to transmit auth tokens — always use wss:// for non-loopback 6.

Backpressure and Reliability

Remote connections are subject to network latency and bandwidth constraints. The app-server implements bounded queues between transport, processing, and outbound stages 4. When the request queue saturates, the server returns JSON-RPC error code -32001 with the message “Server overloaded; retry later”. Clients — including the TUI — handle this with exponential backoff and jitter.

A known issue (GitHub #18203) documents that the outbound queue limit of 128 messages can cause disconnections during long, output-heavy turns over slow links 7. The workaround is to ensure sufficient bandwidth or to use optOutNotificationMethods in the initialize handshake to suppress high-frequency delta notifications you do not need.

The Experimental exec-server Subcommand

Alongside the app-server, CLI 0.119.0 introduced codex exec-server as a standalone WebSocket endpoint 2. Where app-server exposes the full thread/turn lifecycle, exec-server is a lighter-weight entry point for non-interactive automation — think CI pipelines that need to fire a single prompt against a remote codebase and collect the result. ⚠️ Documentation for exec-server remains sparse; treat it as experimental and expect breaking changes.

Exec Mode over Remote

The --remote flag also applies to exec mode, enabling scripted workflows against remote hosts 6:

# Run a one-shot prompt against a remote app-server
codex exec --remote ws://127.0.0.1:4500 \
  "Find all TODO comments and create a tracking issue for each"

# Resume a previous conversation remotely
codex exec resume --last --remote ws://127.0.0.1:4500 \
  "Now fix the three highest-priority issues"

This unlocks headless remote automation: a CI job SSHs into a devbox, starts the app-server, runs a sequence of exec commands, and tears down — no interactive TUI required.

Sandbox Behaviour on Remote Hosts

The sandbox policy is enforced on the remote host, not locally. On Linux remotes, Codex uses bubblewrap (bwrap) for process isolation; on macOS, it uses Seatbelt profiles 8. The v0.121.0 release added a secure devcontainer profile with bubblewrap support and macOS sandbox allowlists for Unix sockets 9, which is particularly relevant for remote devcontainer workflows where Docker sockets and language server Unix sockets need explicit carve-outs.

Configure sandbox policy per-thread via the thread/start params:

{
  "method": "thread/start",
  "params": {
    "sandbox": "workspaceWrite",
    "cwd": "/home/you/project"
  }
}

Or set the default in your remote host’s config.toml:

[sandbox]
mode = "workspaceWrite"
writable_roots = ["/home/you/project"]

When to Use Remote SSH vs. Other Patterns

Scenario Recommended approach
Codebase on a cloud devbox (e.g. GitHub Codespaces, Coder) Remote SSH — keep the filesystem on the remote host
GPU-heavy ML training with code edits Remote SSH — Codex agents run where the GPUs are
Local code, remote build server Remote exec mode — fire build/test commands remotely
Pair programming across machines App-server + WebSocket — multiple TUIs against one server
CI/CD pipeline integration exec-server or exec –remote — headless, scriptable

Current Limitations

Remote SSH is still in alpha 1, so expect rough edges:

  • Gradual rollout — not all Codex App users have access yet.
  • No multi-host within a single thread — each thread targets one remote host.
  • Outbound queue saturation on slow links can drop connections 7.
  • Plugin marketplace operations (codex marketplace add) require network access from the remote host.
  • Realtime voice sessions over remote are not yet supported in the app-server transport.

Looking Ahead

The trajectory is clear: the app-server is becoming the universal harness for Codex, whether the client is a desktop app, a TUI over SSH, a VS Code extension, or a CI bot. The JSON-RPC protocol is documented, schema generation is built in (codex app-server generate-json-schema) 4, and the authentication modes are ready for enterprise use. As the alpha matures, expect multi-host threads, connection pooling, and tighter integration with cloud development environments.

For now, if your code lives on a remote machine, the combination of SSH forwarding and the app-server gives you a first-class Codex experience without leaving your terminal.
